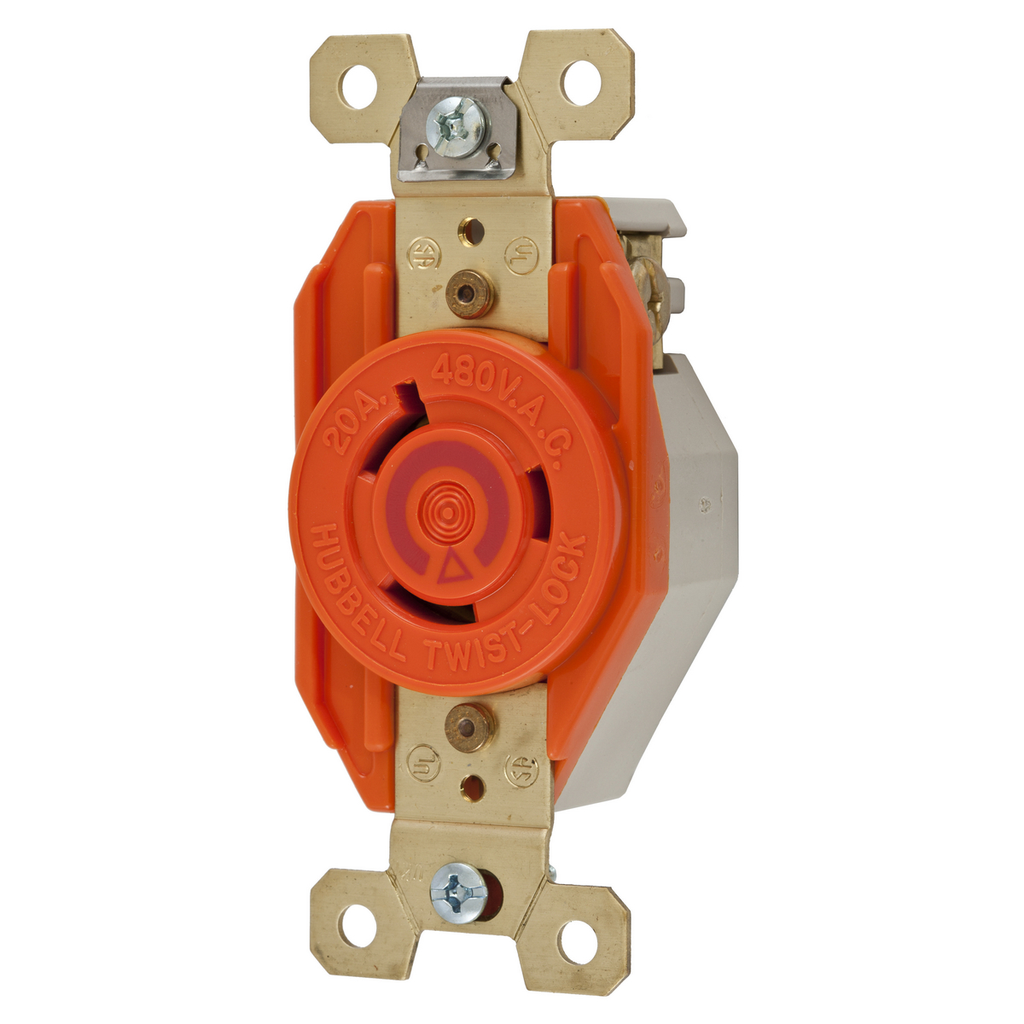

Product image for HWDK IG2340 LKG RCPT, IG, 20A 480V,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

HWDK IG2340 LKG RCPT, IG, 20A 480V,

Manufacturer: Hubbell / Kellems | Catalog # IG2340 | North Coast Part # 753822
$69.69/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page

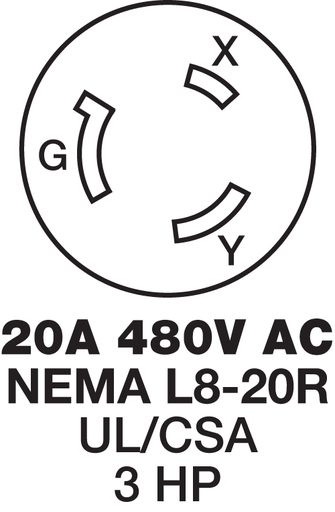

Twist-Lock® Devices, Single Flush Receptacle 20A, 480V AC, 2 Pole, 3 Wire Grounding, NEMA L8-20R, Isolated ground, nylon, Orange

Technical Information

Amperage
20 Amp
Applications
Heavy Duty Industrial
Base Material
RTP
Conductor Size
16-8 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
5 hp
Material
Nylon
NEMA
8-20R
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Screw Terminal
Type
Single
Voltage
480 Volt
Wattage
9600 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock

General Product Info

12-Digit UPC
783585872285
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585872285
Product UPC
78358587228
Weight
0.25 lb

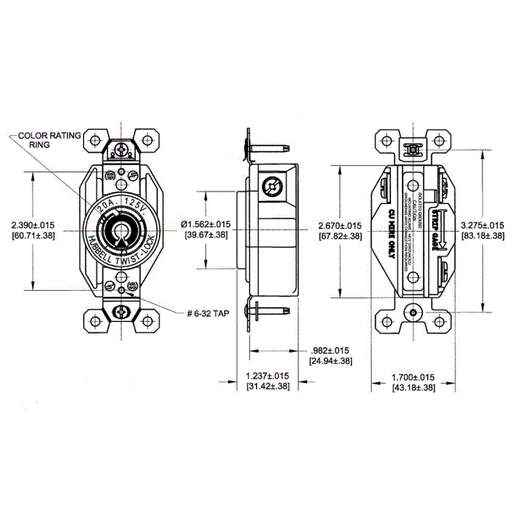

Dimensions

Height
1.24 Inch
Length
3.28 Inch
Width
1.7 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Insulation barrier construction isolates ground contact from mounting strap
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • High-impact, abuse-resistant nylon face
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
  • Isolated Ground
