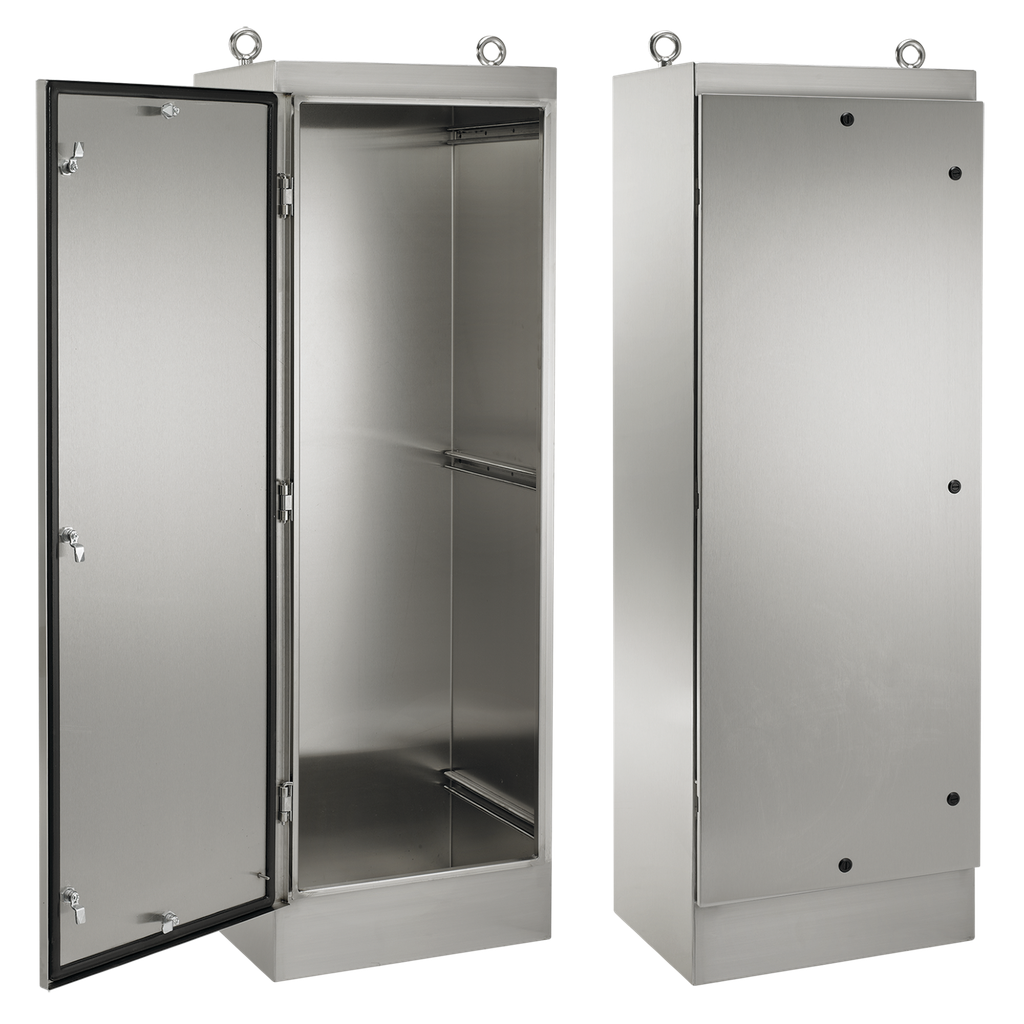

Product image for Hoffman A72HS3624SSLPQT General Purpose Single-Door Free-Stand with Quarter-Turn Latches, Type 4X, 72.13" x 36.06" x 24.15", SS Type 304
Email

Hoffman A72HS3624SSLPQT General Purpose Single-Door Free-Stand with Quarter-Turn Latches, Type 4X, 72.13" x 36.06" x 24.15", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A72HS3624SSLPQT | North Coast Part # 755160
$12,574.60/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
This single-door stainless steel enclosure with quarter-turn latches is designed to house electronic controls and components. It provides protection from non-corrosive or mildly corrosive elements in both indoor and outdoor environments. Typical applications are in the pharmaceutical, food and beverage, packaging, water, petroleum and chemical processing industries.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
IP Rating
66
Material
Stainless Steel
Size
72.13x36.06x24.15 in
Standard
12,4,4X,CUL Listed Per CSA C22.2 No. 94,File No. E61997,IEC 60529,IP66,Meets NEMA Type 3RX,NEMA/EEMAC: Type 3R,Type 3R,UL508A Listed
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510191672
Color
Unpainted
Finish
Brushed
GTiN
00783510191672
Product UPC
78351019167
Weight
326 lb

Dimensions

Depth
24.06 Inch
Height
72.06 Inch
Length
44 Inch
Thickness
1.98 mm
Width
36.06 in
Features
  • Freestanding enclosure with quarter turn latching
  • Seams continuously welded and ground smooth
  • Flange trough collar on all four sides of door openings
  • Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
  • Black die-cast quarter-turn latches with slotted insert provided on three sides of door
  • Concealed stainless steel hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
  • Heavy-duty Type 316L stainless steel lifting eyes
  • Internal accessory mounting channels welded horizontally to sides at top, bottom and center
  • High-impact plastic Data Pocket kit, attached with pressure-sensitive adhesive, is included with enclosure
  • Bonding provision on door; grounding stud on body
  • Accessory mounting channel provided in enclosure top
