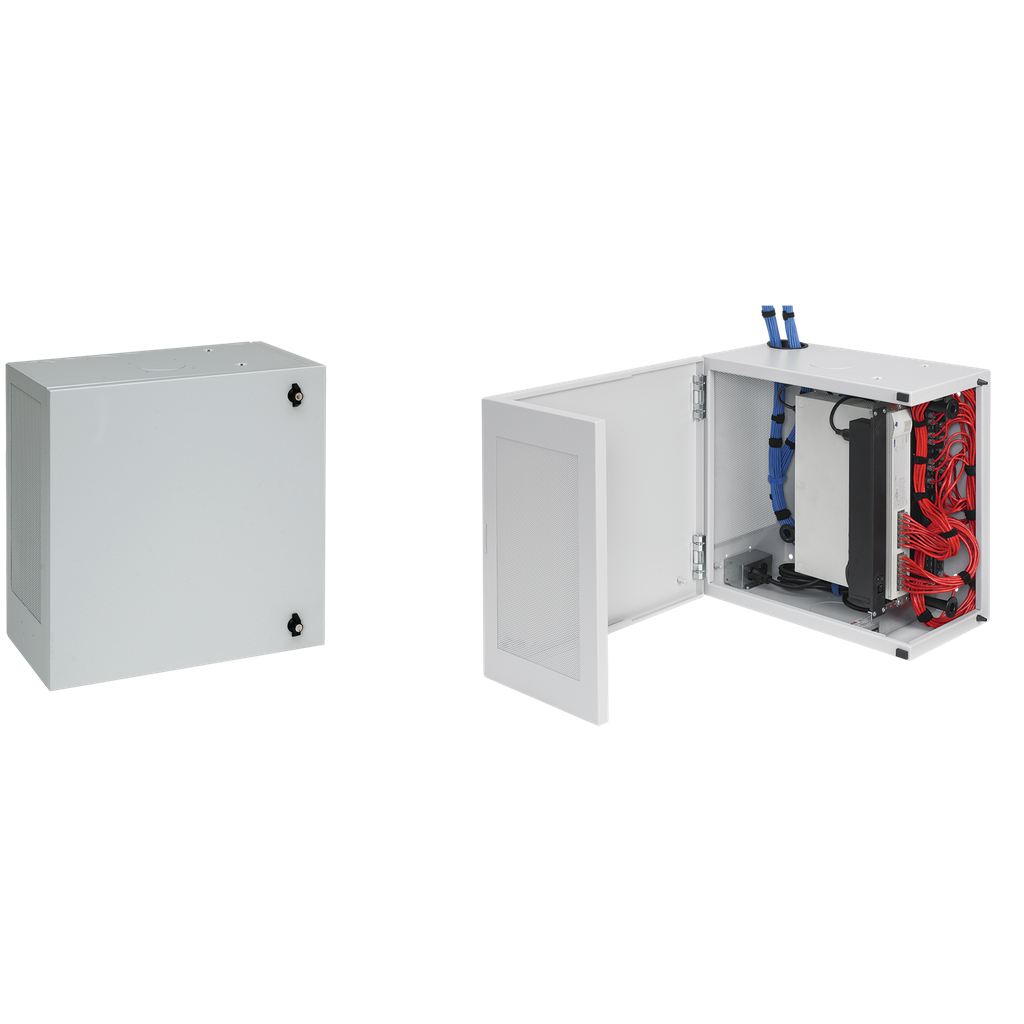

Product image for Hoffman DBL362412G L-BOX, Type 1, 36" x 24" x 12", Lt Gray, Steel
Email

Hoffman DBL362412G L-BOX, Type 1, 36" x 24" x 12", Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # DBL362412G | North Coast Part # 755520
$1,410.29/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The low-profile, vertically-oriented L-Box wall-mount cabinet is extremely versatile and can be used in public settings to mount, store and protect network equipment, patch panels and connections. The hinged, L-shaped door provides full access on two sides to installed equipment while fixed rack angles accommodate varying equipment sizes.

Technical Information

Applications
Networking, Storage and Data Center
Color Coding
RAL 7035
Material
Steel
Rack Unit
6
Standard
CUL Listed Per CSA C22.2 No. 182.4; File No. E230874,Chapter 7, Telecommunication Enclosures (TE),Designed In Accordance With BICSI TDMM Tenth Edition,,EIA 310-D,IEC 60529, IP30,UL 2416 Listed; File No. E230874,UL 508A Listed; Type 1; File Number E61997,Ventilation Complies With UL 60950
Type
Data Networking Wall Mounted Cabinets

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510143749
Color
Light Gray
Finish
Steel/Lt. Gray
GTiN
00783510143749
Product UPC
78351014374
Weight
78 lb

Dimensions

Depth
12.34 Inch
Height
36 Inch
Length
41 Inch
Thickness
1.9 mm
Width
24 in
Features
  • Spring-loaded, self-retained hinge pins allow door removal
  • 120-degree door opening for maximum eqiupment access
  • Quarter-turn latches with key lock
  • One set of fixed rack angles is included on 24- and 36-inch (610- and 914-mm) tall models and two on 48-inch (1219-mm) tall models
  • Rack angles on 36-inch (914-mm) models can be positioned either at the top or the bottom of the cabinet
  • 36- and 48-inch (914- and 1219-mm) tall models have space for patch panel or shelf brackets
  • Knockouts for 4-inch (102-mm) fan on top and bottom of cabinet
  • Wiring knockouts (7/8 inch, 1-3/8 inch, and 3 inch) on top and bottom of cabinet & two 3-inch cable entry knockouts on back
  • Multiple cable tie-down points on back of cabinet
  • Keyhole mounting slots spaced 16.00 inch (406 mm) on center for easy cabinet mounting
