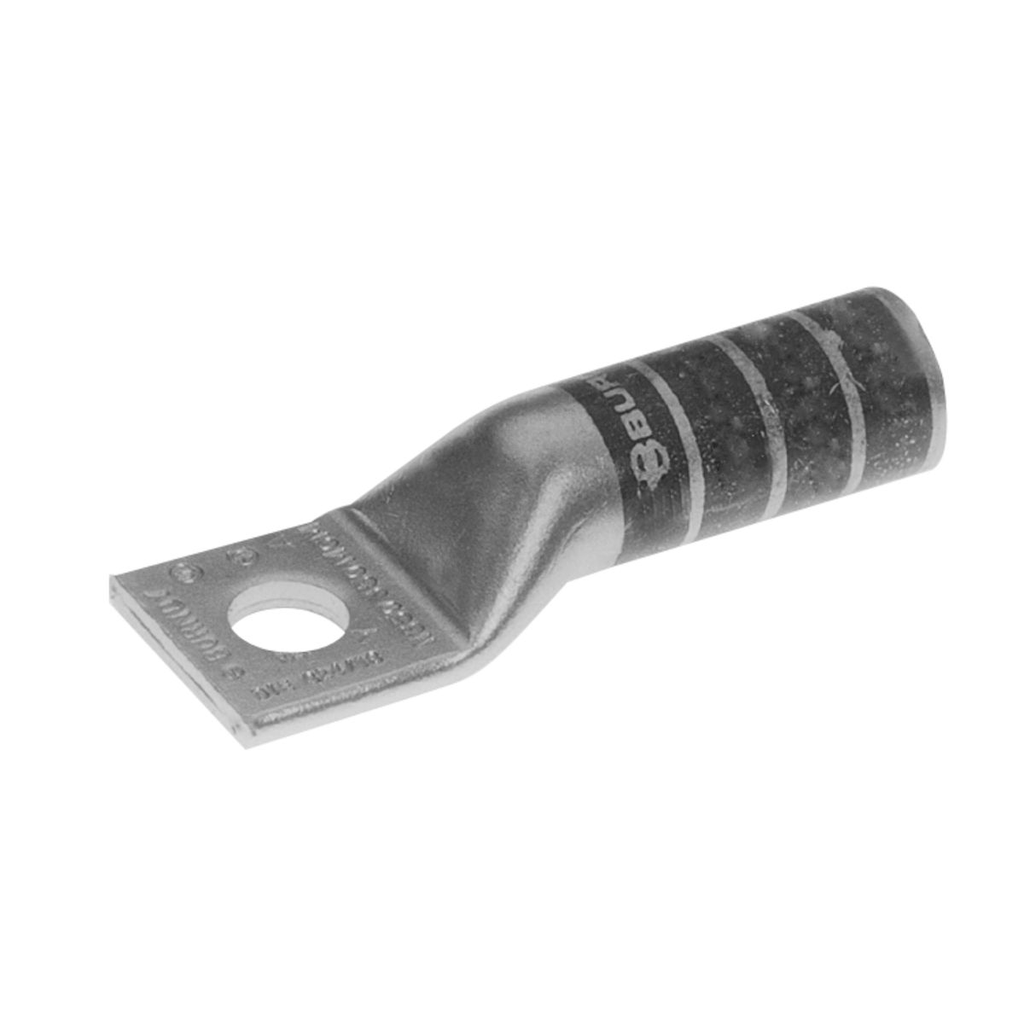

Product image for Burndy YA28N Uninsul Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/O/InspWindow, 4/0 Code, 200 Navy Str, 600 V-35 kV, 1/2" Stud, Lng bbl, Purple, 15 Index
Image thumbnail 0
Image thumbnail 1
Email

Burndy YA28N Uninsul Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/O/InspWindow, 4/0 Code, 200 Navy Str, 600 V-35 kV, 1/2" Stud, Lng bbl, Purple, 15 Index

Manufacturer: Burndy | Catalog # YA28N | North Coast Part # 761669
$61.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Uninsul Cu Comp Terminal Code Cond, Bvl Entry, 1 Hole/W/O/InspWindow, 4/0 Code, 200 Navy Str, 600 V-35 kV, 1/2" Stud, Lng bbl, Purple, 15 Index.

Technical Information

Applications
For use on copper compression connections
Color Coding
Purple
Conductor Material
COPPER
Conductor Size
4/0 AWG
Connection Type
Long Barrel
Material
Copper
Max Voltage
35000 V
Number of Holes
1 Hole
Plated?
Yes
Plating Type
Tin - Electro Plated
Type
Long Barrel, Tin Plated
Voltage
35,000 Volt

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810282229
Color
Purple
Finish
Tin Plated
GTiN
00781810282229
Product UPC
78181028222

Dimensions

Height
0.69 Inch
Hole Size
0.53 in
Length
3.41 Inch
Overall Length
82 mm
Width
1.02 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
  • Long barrel length allows for an increased number of crimps increasing the mechanical strength of the connection
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color
