Thomas & Betts C10-6FL #6 Bolt Hole 12-10 AWG Wire Range Metallic Non-Insulated Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # C10-6FL | North Coast Part # 77009
$226.80/c (100 ea)
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

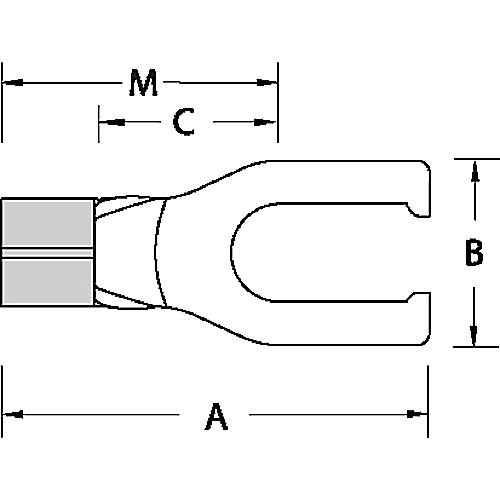

Non-Insulated Locking Fork Terminal, Length .85 Inches, Width .31 Inches, Bolt Hole #6, Wire Range #12-#10 AWG, Copper, Tin Plated

Technical Information

Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E9809
Stud Size
#6
Temperature Rating
150 degrees C
Terminal Type
C
Type
Locking, Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806747
Color
Metallic
Finish
Electro Tin Plated
GTiN
05414363934974
Product UPC
78621080674

Dimensions

Height
3 Inch
Thickness
.04 in
Width
1.63 in
Certifications
  • UL
  • CSA
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
