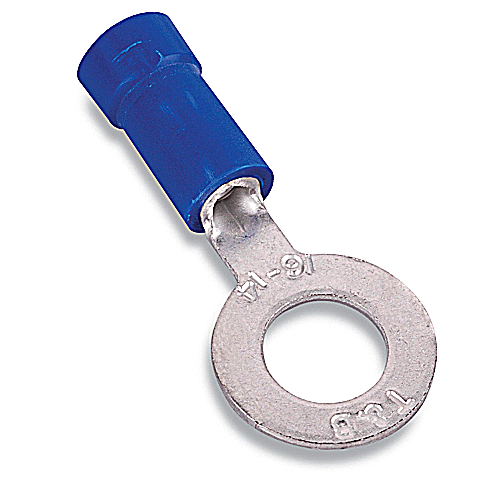

Product image for Thomas & Betts 14RB-14X 18 to 14 AWG 1/4 Inch Stud Blue Electrotinned Copper Expanded Entry Vinyl Insulated Ring Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Thomas & Betts 14RB-14X 18 to 14 AWG 1/4 Inch Stud Blue Electrotinned Copper Expanded Entry Vinyl Insulated Ring Terminal

Manufacturer: Thomas & Betts | Catalog # 14RB-14X | North Coast Part # 77019
$261.96/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
300 available

For Pick Up

at Auburn Opens Thursday 4:00am PT
300 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not in local stock *
Check another branch
Specification Sheet

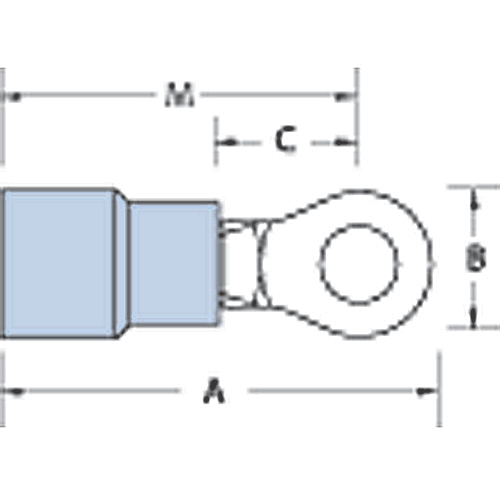

Expanded Vinyl-Insulated Ring Terminal, Length 1.14 Inches, Width .50 Inches, Maximum Insulation .200, Bolt Hole 1/4 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Stud Size
1/4 in
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210800745
Color
Blue
Finish
Tin Plated
GTiN
05414363137948
Product UPC
78621080074
Used With
Round Conductors

Dimensions

Height
8.2 Inch
Thickness
.03 in
Width
10.1 in
Certifications
  • UL
  • CSA
Features
  • Catalog numbers ending with the suffix X indicate an expanded insulation grip. This means a wider wire entry to accommodate heavy wall insulation. Ring terminals won't fall free even if the mounting screw loosens.
