ABB DTW58 CU TP TRANSITION WASHER 5

Manufacturer: Thomas & Betts | Catalog # DTW58 | North Coast Part # 770318
$1,224.57/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Transition Washer for Connecting Aluminum/Aluminum, Aluminum/Copper and Aluminum/Copper Lugs and Bus Bar, Outer Diameter 35.6mm (1.4 Inches), Inner Diameter 17.3mm (0.68 Inch), Stud Size 5/8 Inch, Copper Alloy, Tin Plated

Technical Information

Material
Copper
Standard
UL E9809
Type
Transition Washer

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210869858
Box Quantity
1000
Finish
Tin Plated
GTiN
00786210869858
Product UPC
78621086985

Dimensions

Inside Diameter
0.68 in
Outside Diameter
1.4 in 35.6 mm
Thickness
0.035 in; 0.89 mm
Features

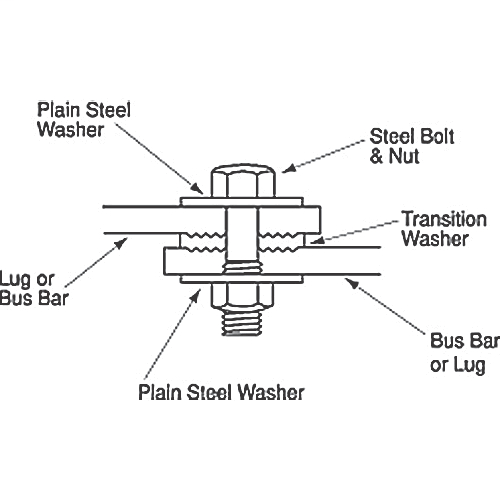

  • Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
  • Transition washers also accommodate the difference in thermal expansion between copper and aluminum, and enhances the efficiency of bolted grounding connections.
