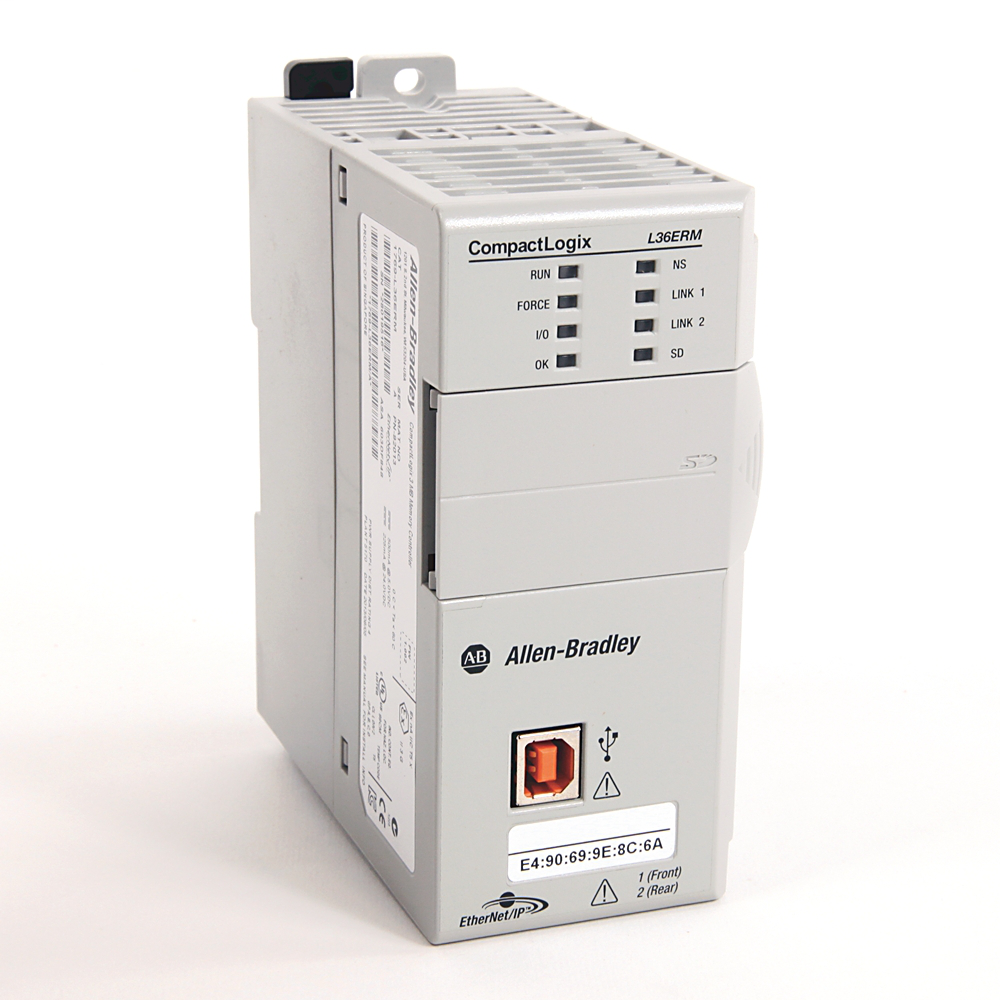

Allen-Bradley 1769-L36ERM Compactlogix 3 mB Memory Controller

Manufacturer: Allen-Bradley / Rockwell | Catalog # 1769-L36ERM | North Coast Part # 771472
$5,725.65/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
5 available

For Delivery

Order by Thursday 4:00pm PT for delivery Friday
Not available for delivery*
Check your local branch
Specification Sheet
CompactLogix 3 MB Motion Controller

Technical Information

Display Type
Status LEDs
Memory
3 MB
Mounting Type
DIN Rail,Panel Mount
Operating Temperature
0 To 60 C
Standard
CCC,CUL,GOST,KC,MARINE,UL
Type
Standard Controller

Manufacturer Information

Family Brand Name
Allen Bradley
Sub Brand
CompactLogix

General Product Info

GTiN
00885630101231
Product UPC
88563010123

Dimensions

Depth
4.13 Inch
Height
4.65 Inch
Width
2.17 in
  • Provides up to 16 axes of Integrated Motion over EtherNet/IP
  • Offer direct connection
  • Offer user memory options ranging 2 MB to 3 MB
  • Allow control migrations with re-use of existing 1769 I/O
  • Offer analog, thermocouple, and RTD modules
  • Offer input filtering
  • Provides seamless bridging with data control and collection over the same network
  • Delivers standard, safety and motion control for On-Machine™ applications
  • Offer a variety of AC and DC voltages
  • Offers a smaller form factor for maximized cabinet space
  • Support seamless bridging with data control and collection over the same network
  • Provides flexibility with DIN rail or panel mounting options
  • Available with conformal coating
  • Includes individual point diagnostic status indicators to ease troubleshooting
  • Provide individually configurable channels
  • Require a chassis
  • Direct 1769 platform connection to PowerFlex® drives and other devices through Compact I/O™ to DPI/SCANport™ and Compact I/O to DSI/Modbus modules
  • Support SIL 3, PLe integrity (L4xS controllers only)
  • Offers built-in communication ports for EtherNet/IP or ControlNet networks
  • Include contact output modules
  • Supports integrated safety up to SIL 3, PLe CAT 4
  • Offers open socket capability that allows support for Modbus TCP as well as devices such as printers, barcode readers and servers
  • Let you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet
  • Integrate with 1769 Compact I/O™ modules
  • Include autocalibration of inputs
  • Provides support for Device Level Ring (DLR) network topologies to help increase network resiliency
  • Require SERCOS interface modules for motion
  • Offer selectable response to a broken input sensor
  • Include I/O packet rate of 10,000 pps
  • Include ability to direct output device operation during an abnormal condition
  • Supports up to 2 axes Kinematics for simple articulated robotics
  • Includes up to a 2-GB secure digital (SD) card for fast program save and restore
  • Removes the need for lithium batteries with built-in energy storage
  • Offers flexible user memory options
  • Connects as many as three banks of Compact I/O™ to a controller; requires use of a communication adapter module and power supply
  • Provide high accuracy ratings
  • Integrates with 1769 Compact I/O™ modules
  • Permit on-line editing, forcing and other standard activities while securely isolating safety functionality (L4xS controllers only)
  • Provides integrated safety and integrated motion in a single controller
  • Simplify your system architecture with distributed I/O over EtherNet/IP
  • Include over-range and under-range detection and indication
  • Support single network strategy to EtherNet/IP TCP/CIP connection 96
  • Include 832 points per module
  • Lets you control distributed I/O via EtherNet/IP, ControlNet, or DeviceNet (select models only)
  • Provide integrated serial port
  • Includes a built-in RS-232 serial port on every 1769-L3x controller
  • Provide dual Ethernet ports for both DLR and linear topologies
  • Include high speed input modules
  • Provides ability to connect with scaled HMI options from the PanelView™ Plus portfolio to PanelView 800 graphic terminals for simple features
  • Ideal for small, to mid-size applications that require low axis motion and I/O point counts
  • Prevents incorrect positioning of module with software keying
  • Does not require a chassis
  • Include on-board scaling
  • Provide optical isolation
  • Includes a 1769-SDN communication interface module for I/O control and remote device configuration over DeviceNet
  • Offers support for Integrated Motion over EtherNet/IP™ for maximized scalability
  • Address reserve, ASCII, Boolean control, and high-speed counter modules available
