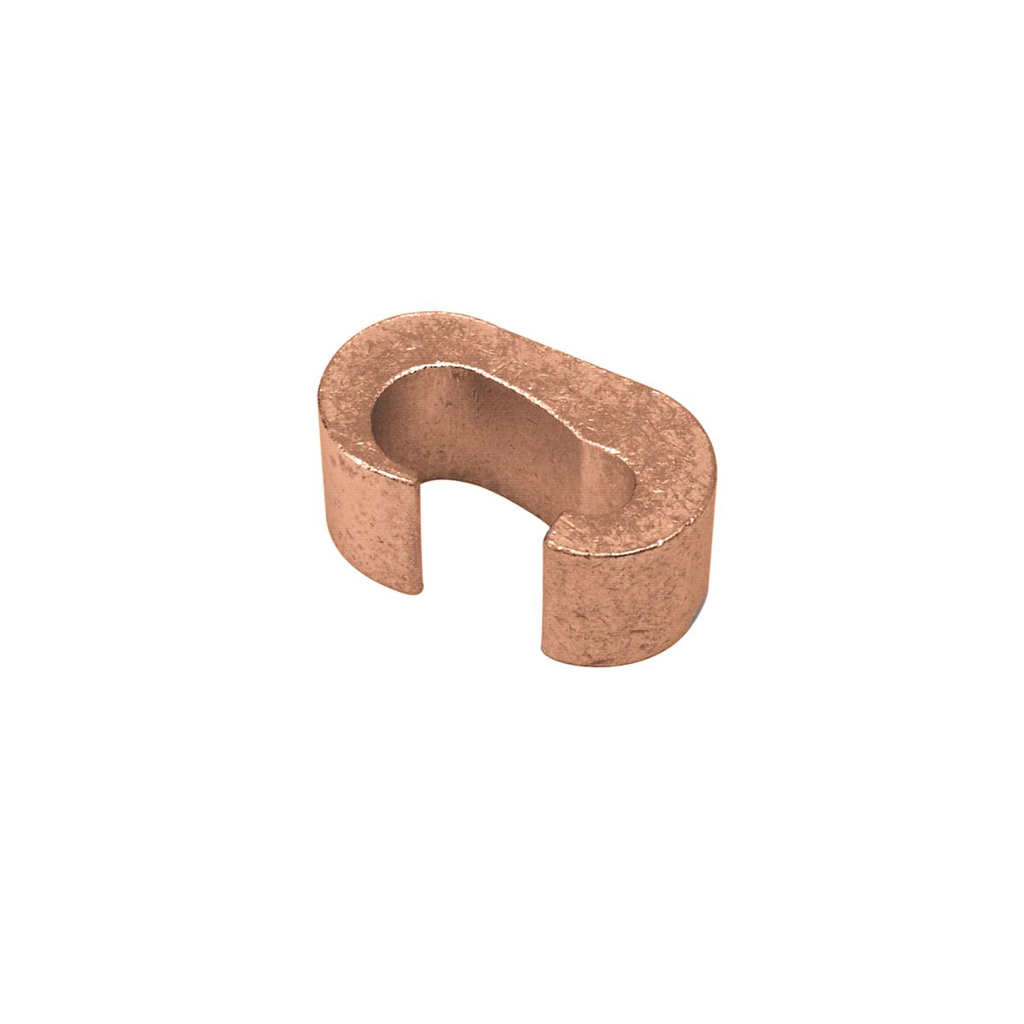

Product image for Burndy YCHC39TC31 Copper Compression C Tap, 750-500 kcmil (Main), 350 kcmil-2 AWG (Tap 1), 2-6 AWG (Tap 2), 8-14 AWG (Tap 3), Tin Plated
Image thumbnail 0
Image thumbnail 1
Email

Burndy YCHC39TC31 Copper Compression C Tap, 750-500 kcmil (Main), 350 kcmil-2 AWG (Tap 1), 2-6 AWG (Tap 2), 8-14 AWG (Tap 3), Tin Plated

Manufacturer: Burndy | Catalog # YCHC39TC31 | North Coast Part # 772007
$101.91/ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Copper Compression C Tap, 750-500 kcmil (Main), 350 kcmil-2 AWG (Tap 1), 2-6 AWG (Tap 2), 8-14 AWG (Tap 3), Tin Plated.

Technical Information

Applications
For general Purpose Applications
Color Coding
Blue
Conductor Material
COPPER
Conductor Size
500/550/600/750 kcmil
Connection Type
C-TAP
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size
2.96 IN Height X 1.53 IN Width X 1.31 IN Length
Tap Size
4/0, 2/0, 3/0, 1, 1/0, 2 AWG, 250, 300, 350 KCMIL
Temperature Rating
90 C
Type
YCHC Series

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810013786
Finish
Tin-Plated,Tin-Plated
GTiN
00781810013786
Product UPC
78181001378

Dimensions

Height
2.96 Inch
Length
1.31 Inch
Overall Length
33 mm
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
CSA
No
Features
  • Range taking C-tap that allows for less inventory as one C-tap can accommodate a multitude of wire combinations
  • Manufactured from high conductivity wrought copper providing low resistance for excellent electrical conductivity
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping
