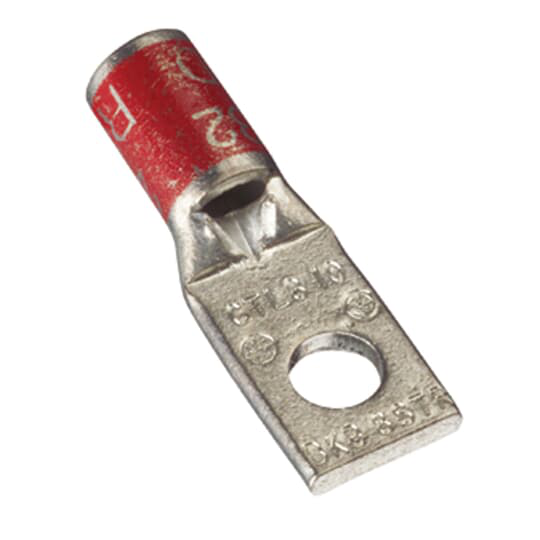

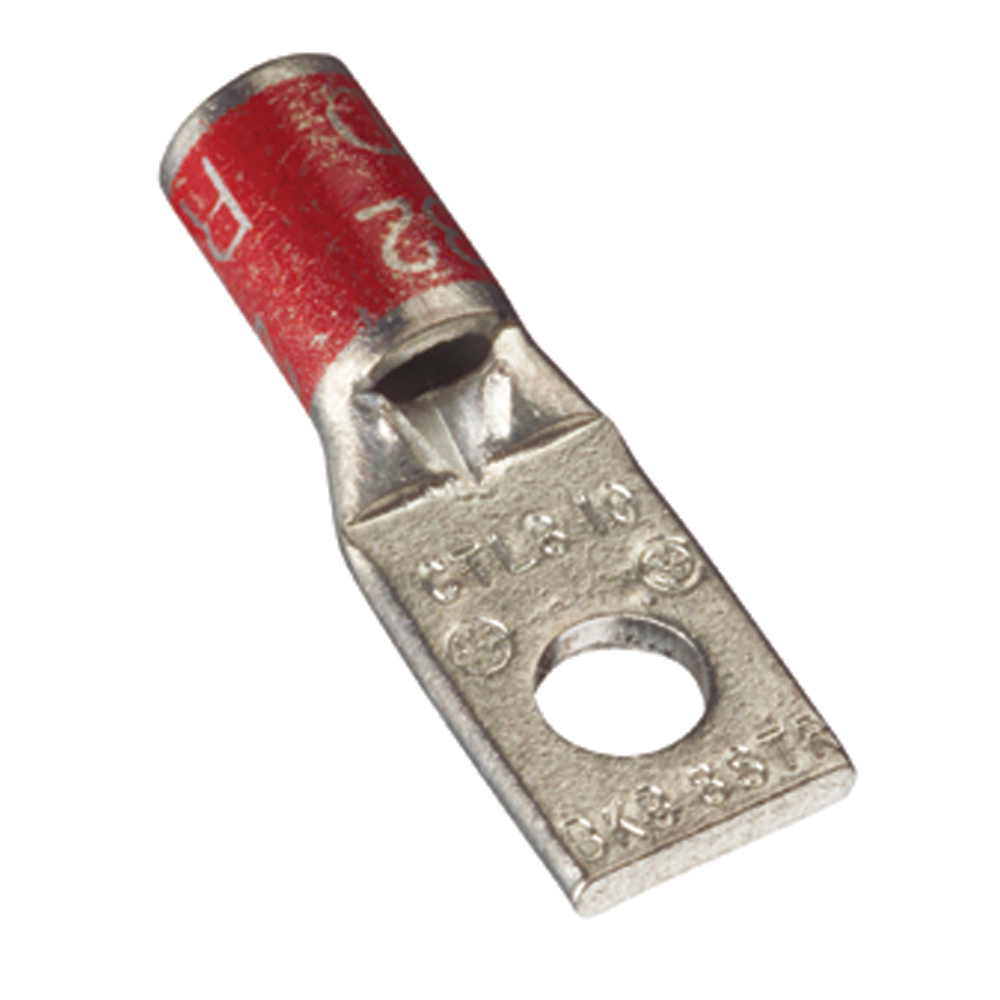

Product image for Blackburn CTL350-12 Compression Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Blackburn CTL350-12 Compression Terminal

Manufacturer: Thomas & Betts | Catalog # CTL350-12 | North Coast Part # 77329
$2,929.95/c (100 ea)
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Copper One-Hole Lug, Short Barrel, Max 35kV, 350 kcmil Wire, 1/2 Bolt Size, Tin Plated, Die Color Code Red

Technical Information

Applications
For Medium Voltage Applications
Barrel Length
Short
Barrel Shape
Standard
Barrel Type
Chamfered, Standard
Cable Size
350 kcmil
Conductor Size
350 kcmil
Die Color
Red
Material
Copper
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
1/2 in
Tongue Angle
Straight
Type
Standard Barrel
Voltage
35 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786131921
Color
Red
Finish
Tin Plated
GTiN
00783786131921
Product UPC
78378613192

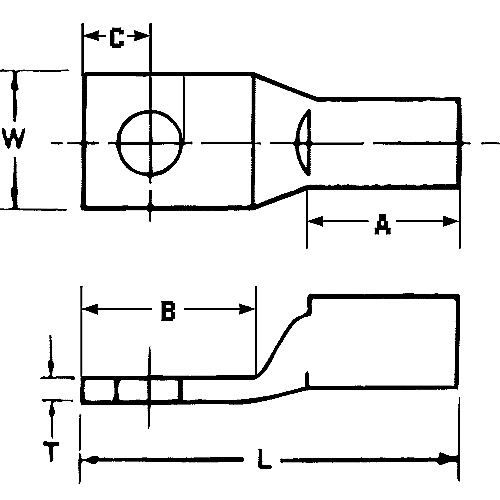

Dimensions

Height
3 Inch
Width
3 in
Certifications
  • CSA
  • UL
Features
  • Complies with Subpart 111.60-17 of Federal Register's Coast Guard Electrical Engineering Rules and Regulations.
  • UL Listed for AWG conductor when installed with Blackburn, Burndy, T&B or Andersons Tools.
  • Color-coded for matching die identification.
  • Specifically chamfered barrel for ease of installation.
  • Made of high-conductivity seamless copper tubing. Tin plated for corrosion resistance.
Notes
  • For use with copper conductor: AWG, stranded, flexible cable, welding cable and portable cord. Specially designed for inductrial and building applications.
