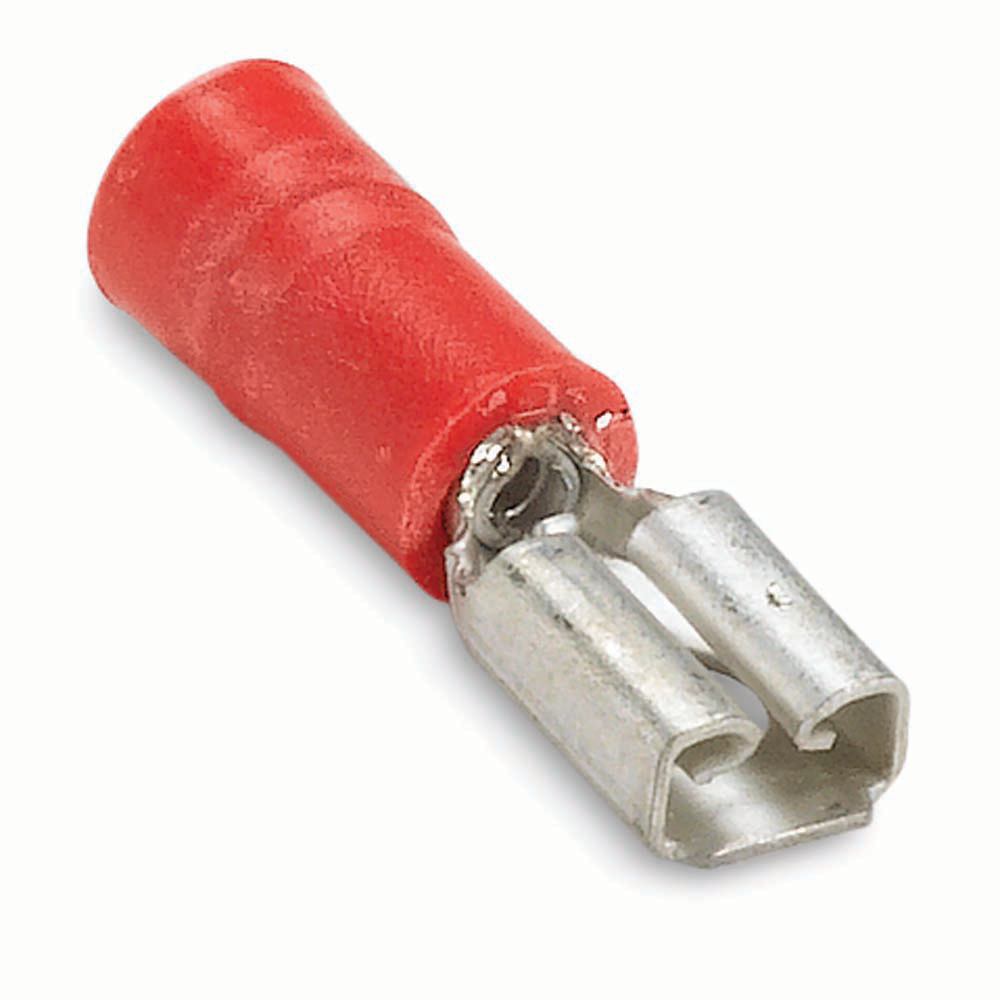

Thomas & Betts RAD1827 .85 Inch Length 22-18 AWG Wire Range .187 Inch Tab Size Insulated Vinyl Female Disconnect

Manufacturer: Thomas & Betts | Catalog # RAD1827 | North Coast Part # 78114
$97.46/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

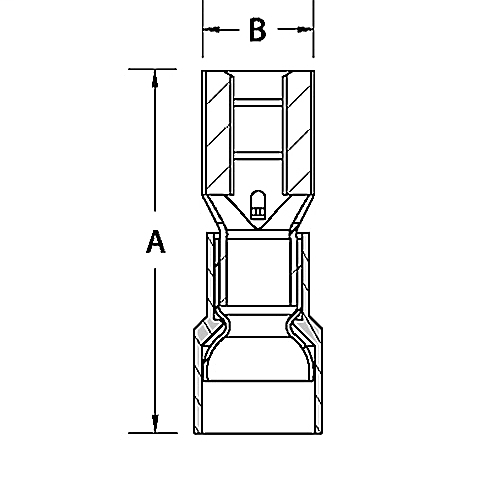

Vinyl-Insulated Female Disconnect, Length .85 Inches, Width .23 Inches, Maximum Insulation .150, Tab Size .187x.020 Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, 1,000 Pack

Technical Information

Insulation Material
Vinyl
Insulation Type
Insulated Vinyl
Material
Brass
Standard
UL E66716
Tab Size
4.8 x 0.5 mm
Temperature Rating
105 degrees C
Type
Flat, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210815718
Color
Red
Finish
Tin Plated
GTiN
05414363158066
Product UPC
78621081571
Features
  • Quick, reliable method of connection to terminal blocks and boards without the use of tools. Unique construction of the female disconnect offers long-term dependability.
Notes
  • Bulk catalog numbers can be put on Mylar Tape for reel-fed applications (i.e. 12050 tool and application dies). Please add the suffix M for Mylar tape.
