ABB F9028 NON-INS FERRULE 6, 16 MM2

Manufacturer: Thomas & Betts | Catalog # F9028 | North Coast Part # 781912
$1,365.04/m (1000 ea)
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

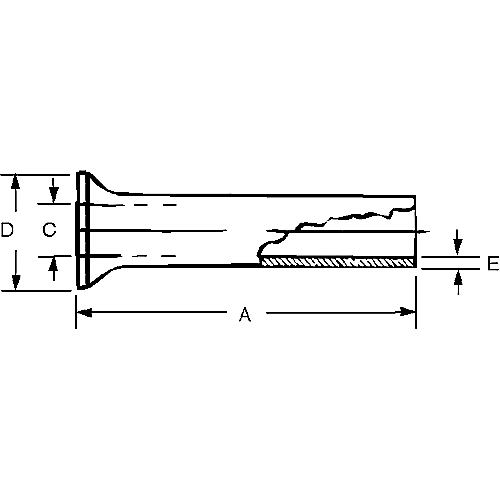

Non-Insulated Ferrule, Length .984 Inches/25mm, Inner Diameter .228 Inches/5.8mm, Outer Diameter .295 Inches/7.5mm, Conductor Size 6 AWG/16mm2, Copper, Tin Plated

Technical Information

Conductor Size
6 AWG
Contact Material
Copper
Insulation Type
Non-Insulated
Material
Copper
Standard
UL E489056
Temperature Rating
150 degrees C
Type
Non-Insulated Ferrule
Wire Size
6 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210336060
Color
Metallic
Finish
Electro Tin Plated
GTiN
05415022309409
Product UPC
78621033606

Dimensions

Overall Length
0.984 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
