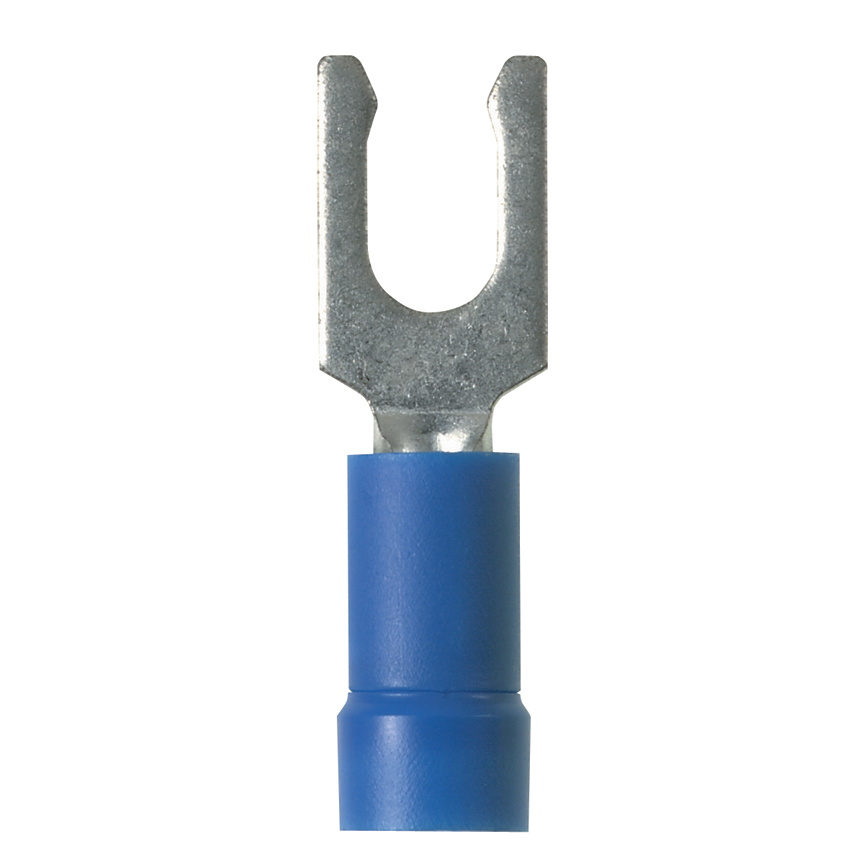

PAN PV14-8LF-E Locking Fork,Vinyl,1

Manufacturer: Panduit | Catalog # PV14-8LF-E | North Coast Part # 782378

$80.59/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days
Locking Fork Terminal, Vinyl Insulated, 18 - 14 American Wire Gauge (AWG), No. 8 Stud Size, Funnel Entry, Convenience Package. Locks in place for secure connection. Fork design provides for fast and easy installation, without the need to remove fastener. Insulation support helps to prevent wire damage in bending applications. Internal barrel serrations assure good wire contact and maximum tensile strength. UL Flammability UL 94V-0, maximum insulation temperature 221 degrees Fahrenheit (105 degrees Celsius). UL and CSA rated up to 600 Volts per UL 486A/B.

Technical Information

Barrel Length
0.49 in
Barrel Type
Funnel
Color Coding
Blue
Enclosure
Fork shape
Material
Copper
Max Operating Temperature
221 degrees F
Size
NA
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Fork Terminal
Voltage
600 Volt
Wire Size
18-14 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Pan-Term

General Product Info

Color
Blue
Finish
Tin Plated
GTiN
00074983364220
Product UPC
07498336422
UNSPSC
39121409

Dimensions

Overall Length
0.97 in
Width
0.29 in

Certifications and Compliance

CA Prop65 Warning
No
Country of Origin
MX
