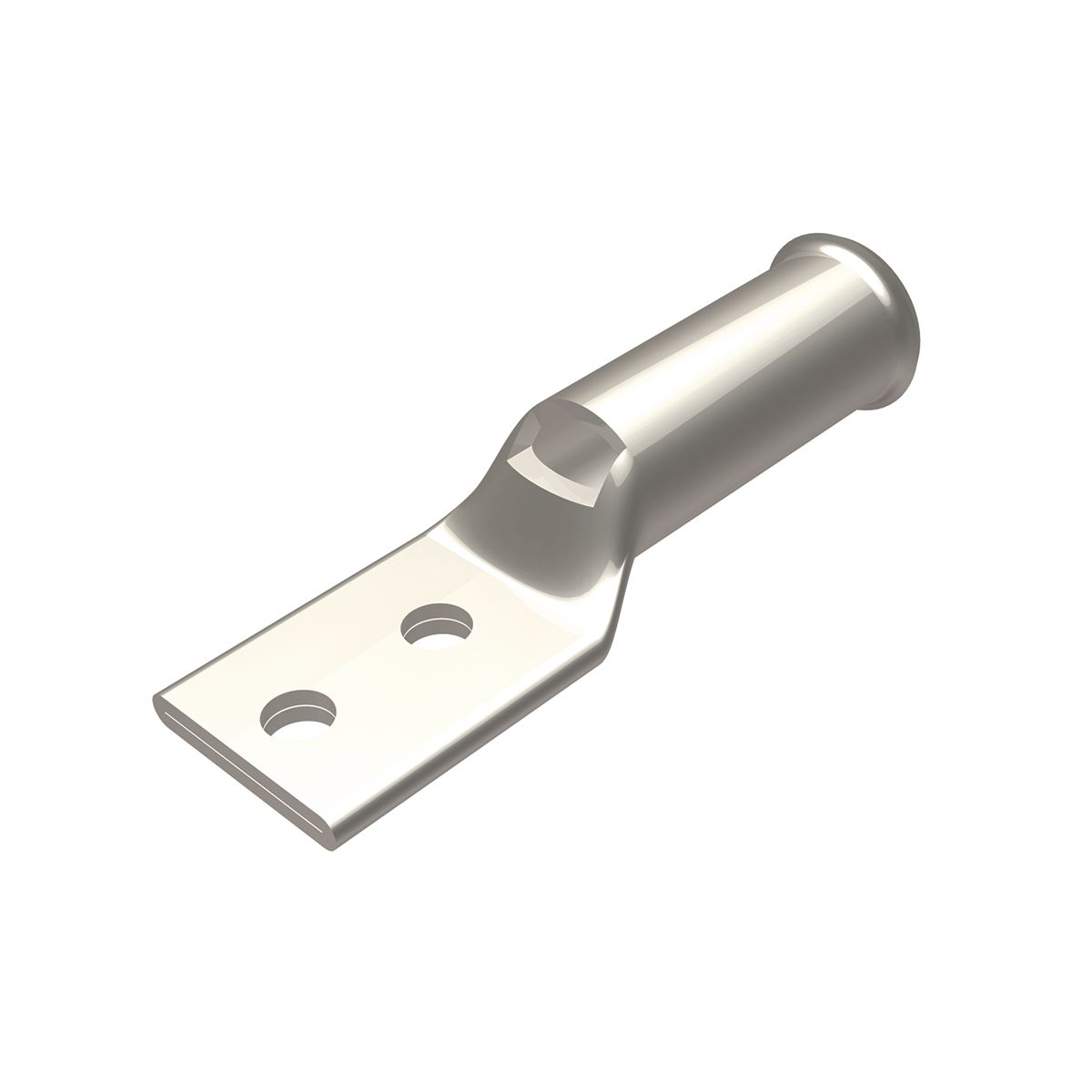

Product image for Burndy YAZ342NTCFXB Cu compression long barrel flex conductor, 2 holes/W/ insp window, 3733 kcmil(925/24), 350 kcmil nom, 1/2" stud, Blue, 19 index
Image thumbnail 0
Image thumbnail 1
Email

Burndy YAZ342NTCFXB Cu compression long barrel flex conductor, 2 holes/W/ insp window, 3733 kcmil(925/24), 350 kcmil nom, 1/2" stud, Blue, 19 index

Manufacturer: Burndy | Catalog # YAZ342NTCFXB | North Coast Part # 782521
$122.35/ea
ea
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet
Cu compression long barrel flex conductor, 2 holes/W/ insp window, 373.3 kcmil(925/24), 350 kcmil nom, 1/2" stud, Blue, 19 index.

Technical Information

Applications
For Flex Conductors
Conductor Material
COPPER
Connection Type
Long Barrel
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Type
Long Barrel, Skive
Wire Size
350 kcmil

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810238660
Finish
Tin Plated
GTiN
00781810238660
Product UPC
78181023866

Dimensions

Height
1.55 Inch
Hole Size
0.56 in
Length
6.27 Inch
Overall Length
159 mm
Width
1.24 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
  • Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
  • Connectors are clearly marked with stamping and barrel color coding
