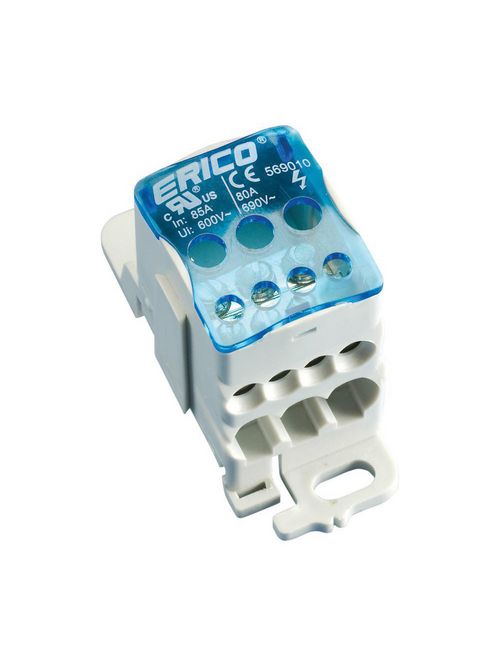

Erico 569010 Single Pole Dist. Block, 85 A UL/CSA, Cable Line, 6 Cables Load, Copper

Manufacturer: Eriflex | Catalog # 569010 | North Coast Part # 786080
$21.47/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution. Single Pole Distribution Block UD-80A, Copper.

Technical Information

Amperage
80 Amp; 85 Amp
Applications
Power Connections
Enclosure Rating
IP20
Material
Copper,Thermoplastic
Number of Conductors
Cable; 6 Cables
Number of Poles
1 Pole
Size
1.82x2.72x1.18
Temperature Rating
185 Deg F
Type
Distribution Blocks
Voltage
1,000 VAC/DC; 600 Volt

Manufacturer Information

Brand
nVent Eriflex
Sub Brand
ERIFLEX

General Product Info

12-Digit UPC
782856594178
Color
Blue,White
Environmental Conditions
86 To 167 Deg F
Finish
Tinned
GTiN
00782856594178
Product UPC
78285659417
Weight
0.06 kg

Dimensions

Depth
46-46
Height
69-69
Features
  • Tinned copper or aluminum block allows for copper or aluminum conductor direct connections, or using ferrule
  • Screw retaining cover is hinged and removable
  • Design allows for visual inspection of conductor and confirmation of connection
  • Modular snap-together blocks for building multi-pole power blocks
  • Easily clips onto DIN rail or mounts to panel with screws
  • 95% fill ratio
  • RoHS compliant
  • Conforms to EN 45545 obtaining an HL3 classification for chapter R23 and HL2 classification for chapter R22
  • Halogen free
Certifications
  • CSA CSA C22.2 No. 158
  • cUR CSA C22.2 No. 158
  • UR ANSI/UL 1059
  • CE, ERIFLEX UD EN 60947-7-1
  • EN 45545 EN 45545-2:2013
  • UKCA, ERIFLEX UD EN 60947-7-1
