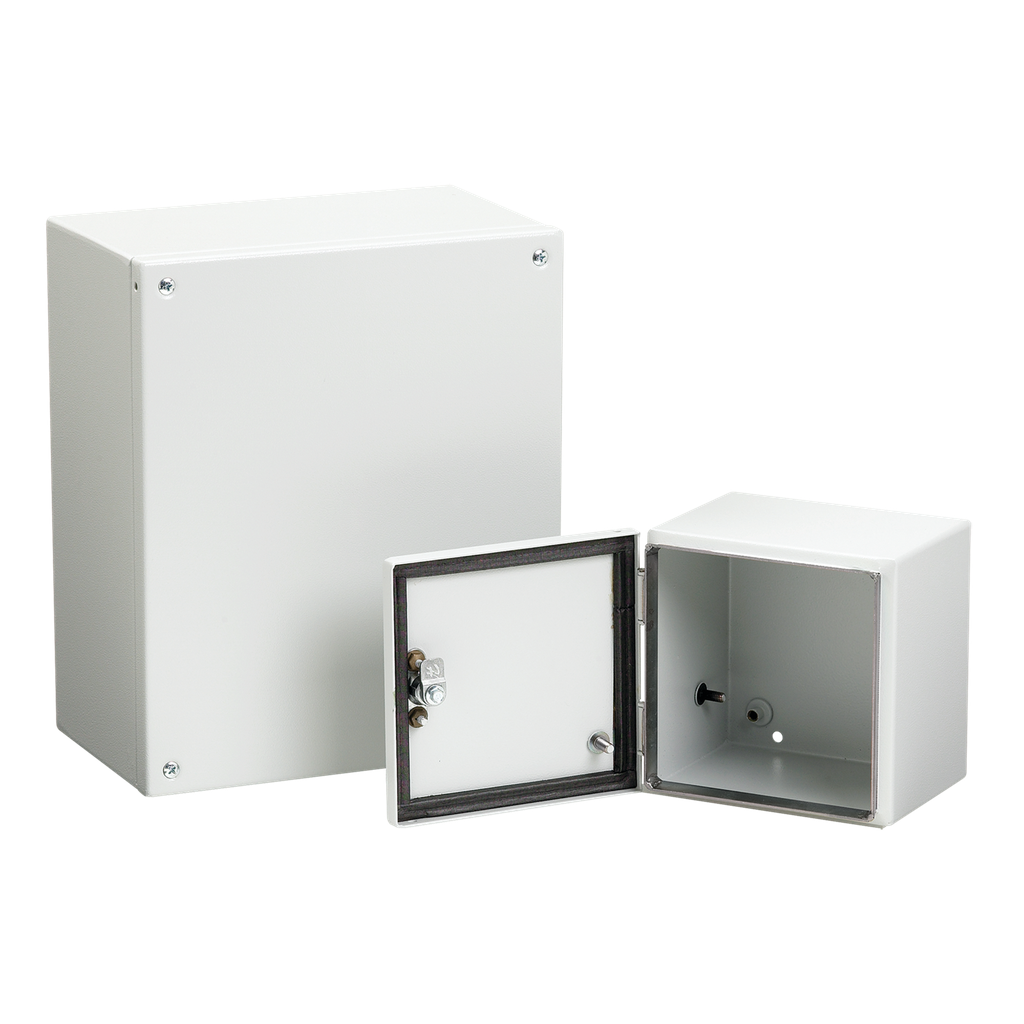

Product image for Hoffman LHC353020EMC INLINE EMC, Type 1, 350x 300x 200mm, Lt Gray, Steel
Email

Hoffman LHC353020EMC INLINE EMC, Type 1, 350x 300x 200mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # LHC353020EMC | North Coast Part # 786193
$1,353.44/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
InLine EMC Enclosures provide style, functionality and EMC protection. The flush body-to-door design can be secured by either screws or quarter-turn latches, making these enclosures an excellent choice for applications requiring an aesthetic appearance and EMC protection.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
350x300x200mm
Standard
CUL Listed Per CSA C22.2 No. 94; Type 1; File No. E61997,IEC 60529, IP40,Mounting Brackets Required To Meet UL/CSA External Mounting Requirement.,NEMA/EEMAC Type 1,UL 508A Listed; Type 1; File No. E61997
Type
Mild Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
InLine

General Product Info

12-Digit UPC
783510301095
Color
Light Gray
Finish
Powder Coated
GTiN
00783510301095
Product UPC
78351030109
Weight
13.4 lb

Dimensions

Depth
7.87 Inch
Height
13.78 Inch
Length
14.6 Inch
Thickness
1.5 mm
Width
11.81 in
Features
  • Seams continuously welded and ground smooth
  • External formed body flange channels away liquids
  • Large perimeter body opening
  • Mounting holes in back of body for direct mounting or optional external mounting brackets
  • Bonding provision on cover and body
  • Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
  • Plated interior surfaces for gasket contact areas and conduit entries
  • Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
  • Installation instructions
  • Shielding effectiveness greater than 50 dB at 1 GHz
  • INLINE EMC Screw-Cover Enclosures:
  • Captivated cover screws with sealing bushings
  • Integral gasket compression stops
  • INLINE EMC Hinged-Door Enclosures:
  • Door opens 180 degrees
  • Removable hinged door
  • Self-grounding, slotted quarter-turn latch
  • Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
  • Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
