Burndy YH292CWC Copper Compression H Tap, Tin Plated, Accommoding the following wire sizes - Run (Main): 250 kcmil-2 AWG Class B,C, 4/0 AWG-2 AWG Class I, DLO; Tap 1: 2 AWG-6 AWG Class B, C, Solid, and 2 AWG-8 AWG Class I, DLO See sale drawing for metric wire size accommodates

Manufacturer: Burndy | Catalog # YH292CWC | North Coast Part # 79139
$67.45/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet

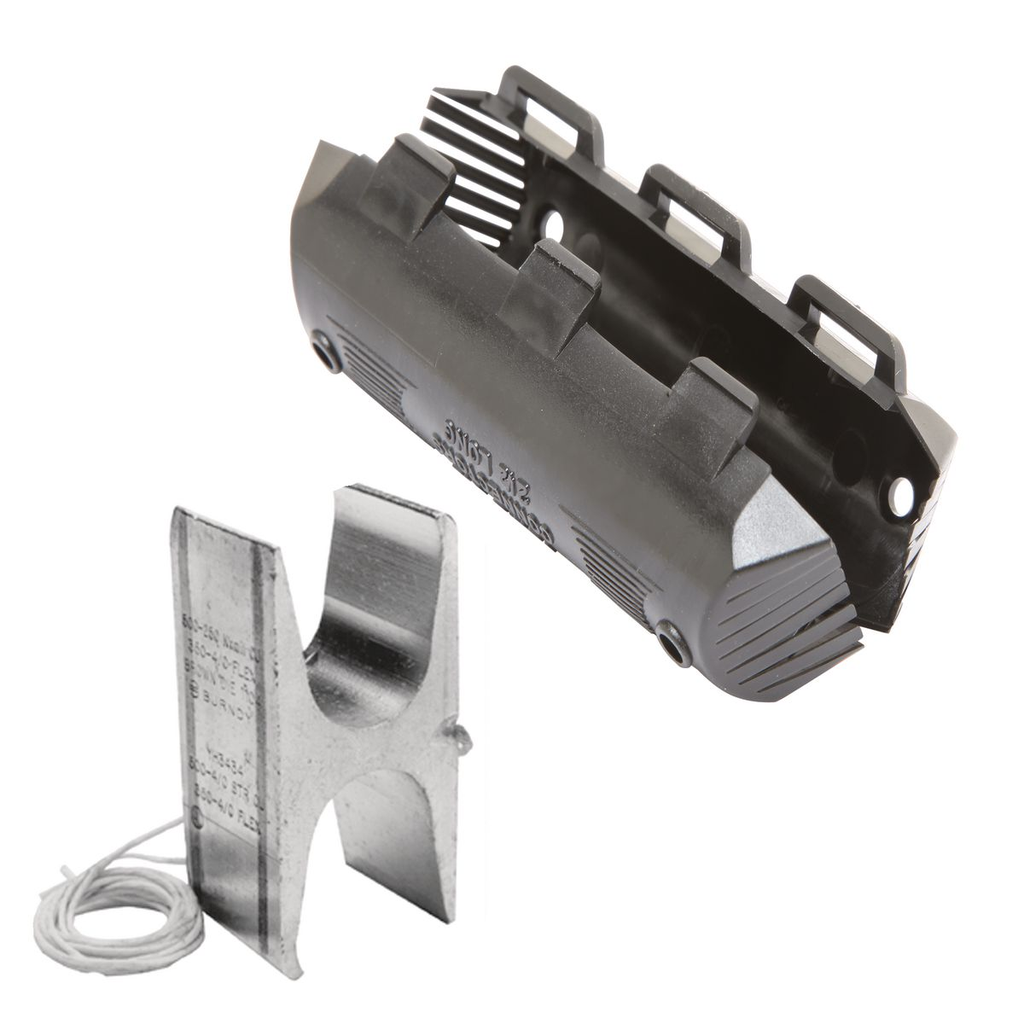

Copper Compression H Tap w/ Black Flame Retardant Cover, 250 kcmil-2 AWG (Main), 2-6 AWG (Tap 1), 8-14 AWG (Tap 2), Tin Plated

Technical Information

Applications
For Used To Accommodates A Wide Range Of Run/Tap Copper Cable Combinations Including Both Flexible And Code Combinations
Color Coding
Purple
Conductor Material
COPPER
Conductor Size
2 AWG-250 kcmil
Connection Type
BLK COVER,H-TAP W
Material
Copper
Max Voltage
35000 V
Plated?
Yes
Plating Type
Tin - Electro Plated
Size
1.52 IN Height X 0.9 IN Width X 0.9 IN Length
Tap Size
2, 4, 6, 8, 12, 10, 14 AWG
Temperature Rating
194
Type
Compression Taps

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810000298
Finish
Tin-Plated,Tin-Plated
GTiN
00781810000298
Product UPC
78181000029

Dimensions

Height
1.52 Inch
Length
0.9 Inch
Overall Length
23 mm
Width
0.90 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
Yes
Features
  • Uninsulated compression H-tap connector, tin-plated
  • Designs with more than one tap wire groove require installers to utilize a minimum of one Main (Run) and one Tap groove, other grooves can be left empty
  • 'Third Hand' is a string provided with the H-tap connector and is used to wrap the wire while being inserted into the run and tap grooves
  • H-tap connectors can be purchased separately or kitted with covers
  • YH is connector sold separately without cover
  • YH-WC is kitted H-tap connector and black cover
  • YH-WCC is kitted H-tap connector and clear cover
