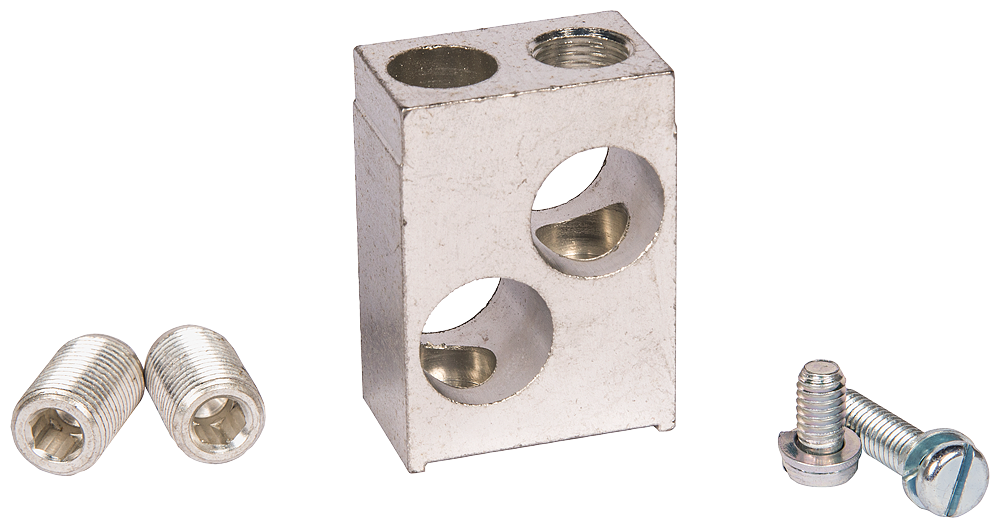

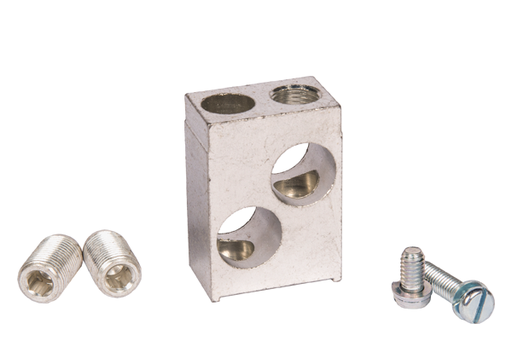

Siemens TA2J6500 250 to 600 Amp 4/0 AWG to 500 MCM Copper/Aluminum 2-Conductor Circuit Breaker Lug

Manufacturer: Siemens | Catalog # TA2J6500 | North Coast Part # 79297
$71.76/ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Pick Up

at Auburn Closes 4:00pm PT
2 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
Lug for use with JXD2(A), JXD6(A), JD6(A), SJD6(A), HJD6(A), HJXD6(A), HHJXD6, HHJD6, SHJD6(A), CJD6, SCJD6, LXD6(A), LD6(A), SLD6(A), HLD6(A), HLXD6(A), HHLXD6, HHLD6, SHLD6(A), CLD6, SCLD6 circuit breakers, 3/0 AWG-500 kcmil copper, 4/0 AWG-500 kcmil aluminium, 1-2 cable per lug, 200-600 A circuit breaker rating.

Technical Information

Applications
For Use With JXD2(A), JXD6(A), JD6(A), SJD6(A), HJD6(A), HJXD6(A), HHJXD6, HHJD6, SHJD6(A), CJD6, SCJD6 Breakers
Conductor Size
4/0 AWG-500 kcmil (AL) / 3/0 AWG-500 kcmil (CU)
Conductor Type
Aluminum/Copper
Enclosure
Type 1,Type 3R
Frame
JXD2(A), JXD6(A), JD6(A), SJD6(A), HJD6(A), HJXD6(A), HHJXD6, HHJD6, SHJD6(A), CJD6, SCJD6
Material
Aluminum
Number of Holes
2 Hole
Temperature Rating
75 degrees C
Type
Aluminum body lugs

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643184312
GTiN
00783643184312
Product UPC
78364318431
Used With
Sentron 200 - 400 A JXD2(A), JXD6(A), JD6(A), SJD6(A), HJD6(A), HJXD6(A), HHJXD6, HHJD6, SHJD6(A), CJD6, SCJD6 Molded Case Circuit Breakers
Weight
0.342 lb

Dimensions

Height
2 Inch
Length
3 Inch
Width
1.000 in

Certifications and Compliance

Country of Origin
Mexico
