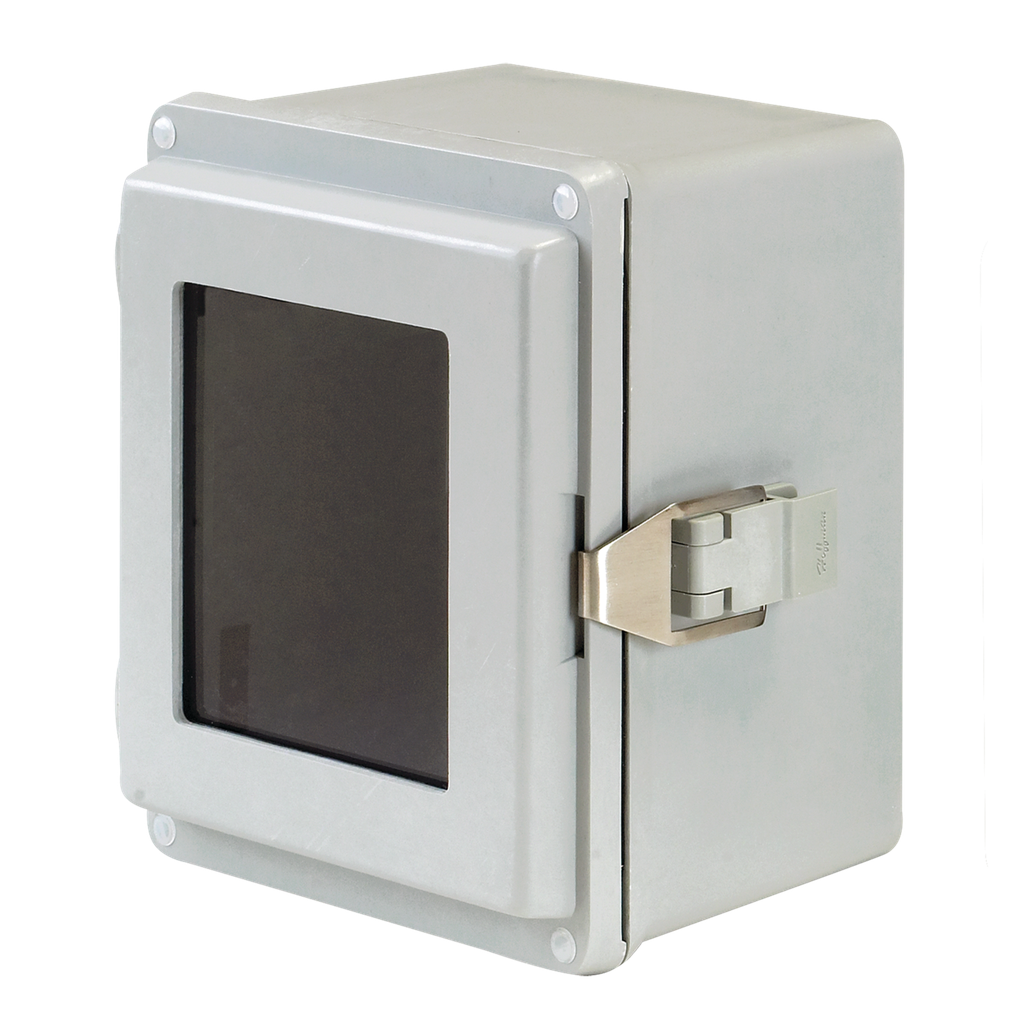

Product image for Hoffman A18149JFGQRPWR Screw- or Hinge-Cover with Quick-Release Latch, Type 4X, 17.5" x 14" x 8.53, Fiberglass
Email

Hoffman A18149JFGQRPWR Screw- or Hinge-Cover with Quick-Release Latch, Type 4X, 17.5" x 14" x 8.53, Fiberglass

Manufacturer: nVent Hoffman | Catalog # A18149JFGQRPWR | North Coast Part # 79355
$999.52/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Able to withstand harsh environments, these small enclosures feature a simple, traditional non-metallic design that is suitable for a broad range of applications.

Technical Information

Applications
Controls and Drives; Corrosive Environments
Capacity
2090 cu in
Color Coding
RAL 7035
Cover Type
Hinged with Quick-Release Latch
IP Rating
66
Material
Fiberglass
Mounting Type
Wall
Number of Latches
2
Size
17.50x14.00x8.53 in
Standard
CSA File No. 42186: Type 3R, 4, 4X, 12,CUL Listed Per CSA C22.2 No 94; Type 3, 3R, 4, 4X, 12, 13;,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 3, 3R, 4, 4X, 12, 13,UL 508A Listed; Type 3, 3R, 4, 4X, 12, 13; File No. E61997,Window Flammability Evaluated Per UL 508A
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510413408
Color
Light Gray
Finish
Matte
GTiN
00783510413408
Product UPC
78351041340
Weight
11.1 lb

Dimensions

Depth
9 Inch
Height
18 Inch
Length
18.4 Inch
Thickness
3.8 mm
Width
14 in
Features
  • Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties
  • Fiberglass material is easily punched, drilled, filed or sawed
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Threaded internal bosses provided for mounting optional panels and terminal block kits
  • Scratch-resistant polycarbonate windows are permanently bonded in place
  • Screw-cover enclosures have easily removable covers attached to body with internal plated steel hinges
  • Cover securely fastens to the body with four captivated Type 316 stainless steel cover screws
  • Enclosures with quick-release latches have corrosion-resistant polyester hinges and polyester latches with a Type 316L stainless steel bail attached with Type 316 stainless steel screws
  • A Type 316L stainless steel padlock hasp is furnished with each enclosure
  • Sealing washers are furnished with enclosure
