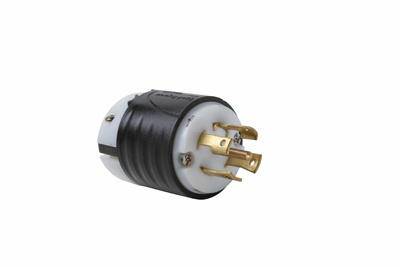

Pass & Seymour L2230-P 30 Amp 277/480 VAC Star 3-Phase 4-Pole 5-Wire NEMA L22-30P Black and White Nylon Straight Locking Plug

Manufacturer: Legrand / Pass & Seymour | Catalog # L2230P | North Coast Part # 795185

$55.17/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Plug 5wire 30amp 277/480volt Turnlok

Technical Information

Amperage
30 Amp
Applications
Commercial
Material
Thermoplastic
NEMA
L22-30P
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5.0
Size
3.75"
Type
Plug Tail
Voltage
277 Volt
Wire Size
10-18 Awg

Manufacturer Information

Family Brand Name
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

Color
Black
GTiN
00785007223040
Product UPC
78500722304
UNSPSC
39121403

Dimensions

Diameter
2.20 in
Length
3-3/4 Inch

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
  • Rounded back contour reduces snags and hang-ups on the job site.
  • Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber.
  • Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire.
  • Raised ribs provide non-slip gripping profile for turning to lock and unlock.
  • New-design external cord grips provide visible assurance of safe and proper cord retention.
  • Scallop shell design provides non-slip gripping surface for insertion and withdrawal.
  • Visible stamped NEMA configuration and device rating.
  • Impact- and corrosion-resistant durable nylon 6 shell material.
  • Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity.
  • Double dovetail design provides superior protection against cord pull-out forces.
