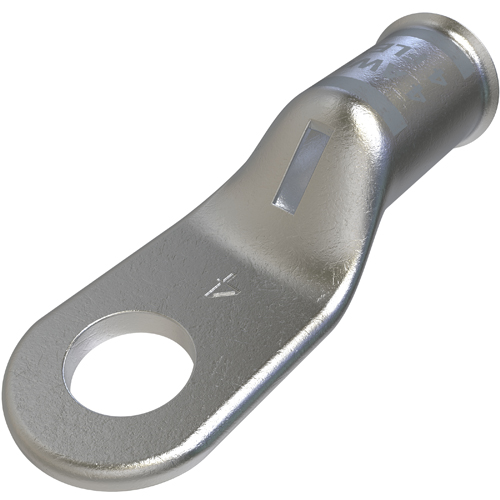

Ilsco CCL-4-14 Copper Compression Lug, Conductor Size 4, 1 Hole, 1/4in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # CCL-4-14 | North Coast Part # 796776
$5.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
ILSCO Copper Compression Lug, Copper material, Tin plated connector,Standard barrel, 1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 486A/B Listed, C22.2 No. 65-03, 180. connecting angle, Copper Primary Conductor 4 Str, sight window, Round tang end, flex conductor range 4 G,H,I,K,M,DLO, rated for 35 kV, die color code Gray, primary color Silver, die index I-29,

Technical Information

Applications
Copper Compression Lug
Barrel Type
Seamless
Bolt Size
1/4 IN
Color Coding
Gray
Conductor Size
4 AWG
Material
Copper
Number of Holes
1 Hole
Size
L:1.5;W:0.525;H:0.435 IN
Standard
CSA File Number: LR-29601,UL File Number: E6207,UL Specifications: UL 486A-B
Stud Size
1/4 in
Temperature Rating
90 degrees C
Type
Light Duty
Voltage
35000 Volt

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669031225
Color
Silver
Finish
Electro Tin Plated
GTiN
00783669031225
Product UPC
78366903122

Dimensions

Inside Diameter
0.283 in
Outside Diameter
0.362 in
Overall Length
1-1/2 in
