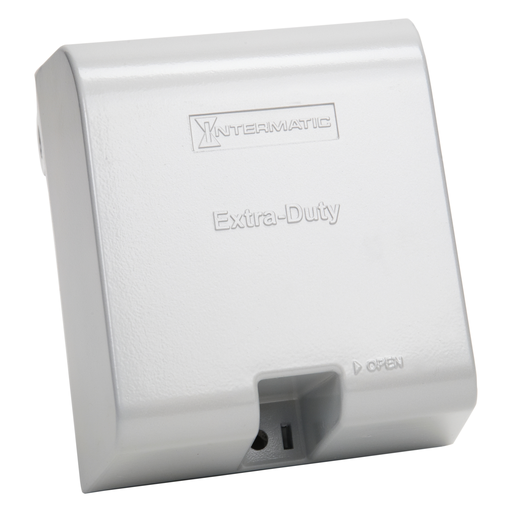

Intermatic WP1250MXD Two Gang Extra-Duty Weatherproof In-Use Receptacle Cover, 4-5/8" Deep, Die Cast Aluminum

Manufacturer: Intermatic | Catalog # WP1250MXD | North Coast Part # 797554
$70.70/ea
ea
Log in or register to view your price, purchase history, and more!
8 available

For Pick Up

at Auburn Closes 3:00pm PT
8 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
Specification Sheet
Die-Cast In-Use Aluminum Weatherproof Covers are extra-duty rated and easy to install. Heavy-duty die-cast aluminum construction ensures long-lasting durability. Covers come with an adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications

Technical Information

Applications
Engine Block Heaters,Receptacle Protection,Walk-in Refrigeration Cooler/Freezer
Cable Size
(2) 14 Gauge, (2) 12 Gauge
Gang Type
Double
Insulation Material
Neoprene Gasket
Material
Aluminum
Mounting Type
Vertical
Number of Gangs
2 Gang
Number of Outlets
2
Size
4.625 DEPTH X 6.37 HEIGHT X 5.75 WIDTH IN, 117.47 DEPTH X 161.79 HEIGHT X 133.85 WIDTH MM
Type
Weatherproof Receptacle Cover

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275130111
Color
Gray
Construction
Heavy-Duty Die-Cast Aluminum
Construction Features
Heavy-Duty Die-Cast Aluminum
GTiN
00078275130111
Product UPC
07827513011
Shape
Rectangle

Dimensions

Depth
4-5/8 Inch
Height
6-3/8 Inch
Warranty Length
1 yr
Width
5.625 in

Certifications and Compliance

Country of Origin
China
Features
  • Complies with 2020 NEC Article 406.9 (B)(1) for wet locations and extra-duty applications
  • CEC Article 26-702 Compliant
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty die-cast aluminum cover and mounting base with UV stabilized polycarbonate inserts
  • 1?8\" (3 mm) thick, neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank
  • Impact rated: 12 lbf. impact test to ensure cover remains intact
  • Reinforced hinge pin designed to exceed 40 lbf. hinge hang/stress test
  • Warranty: 1-year limited
