PAN ML8-CY Cu Mech Lug,#14 SOL-8 ST

Manufacturer: Panduit | Catalog # ML8-CY | North Coast Part # 799768

$251.64/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 10 days

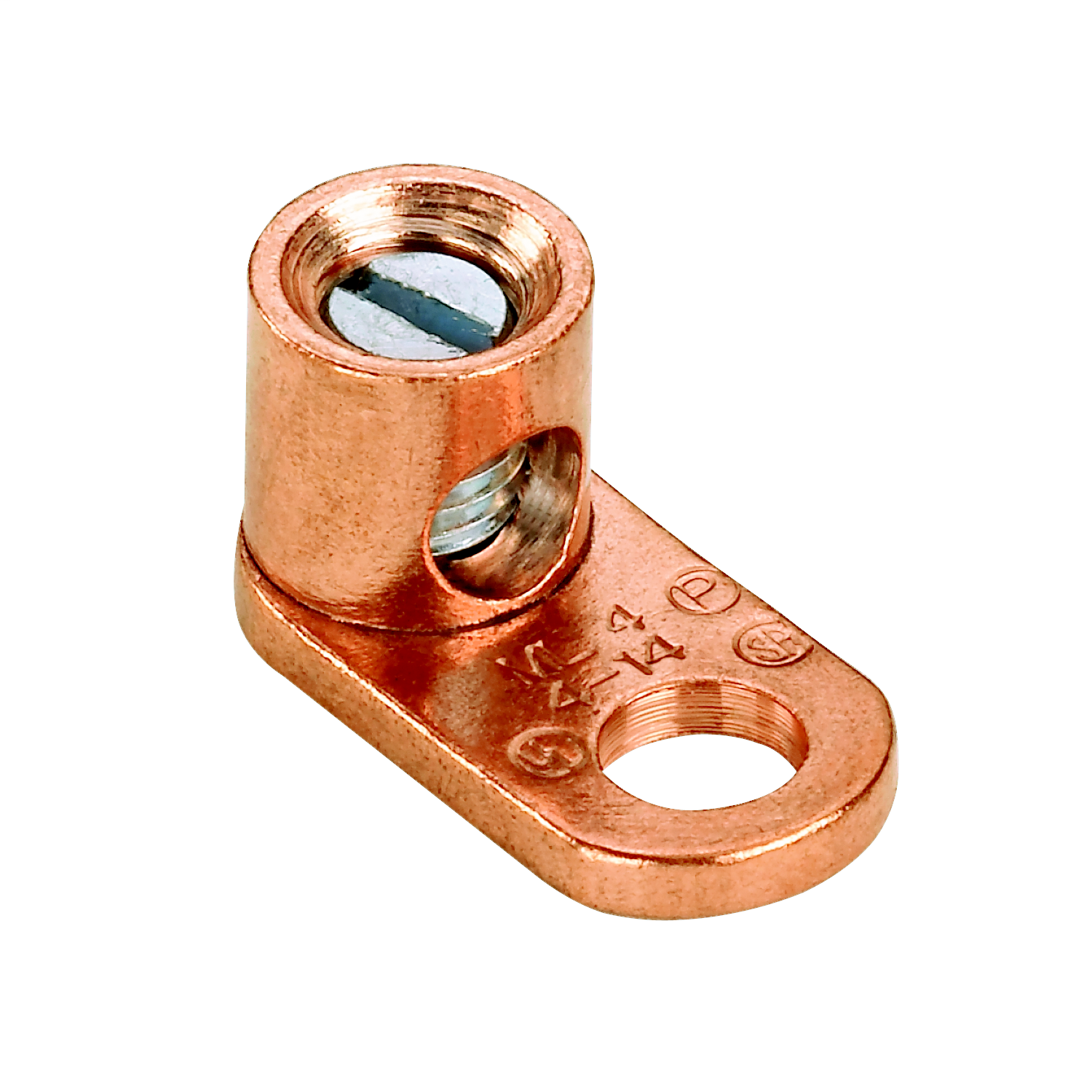

Copper Mechanical Lug, 1 Hole, Barrel Post, No. 14 Solid Conductor (SOL) - No. 8 Stranded Conductor (STR), 3/16 Inches (4.8 mm) Stud, Made from high strength electrolytic copper to provide premium electrical and mechanical performance, Compact design saves space, Wide wire range-taking capability minimizes inventory requirements, Inspection window to visually assure full conductor insertion, Plated steel set screw provides high strength, durable electrical contact between conductor and connector, Flat bottom allows for complete contact with mounting surface, UL Listed for use up to 600 V and temperature rated 90 Degrees Celsius.

Technical Information

Material
Copper
Type
Mechanical Connectors - Lugs

Packaging

Pkg Qty
100

Manufacturer Information

Family Brand Name
Panduit
Sub Brand
Type ML

General Product Info

GTiN
00074983596317
Product UPC
07498359631
UNSPSC
39121408

Dimensions

Height
0.42 Inch
Overall Length
0.81 in

Certifications and Compliance

CA Prop65 Warning
No
Country of Origin
IN
