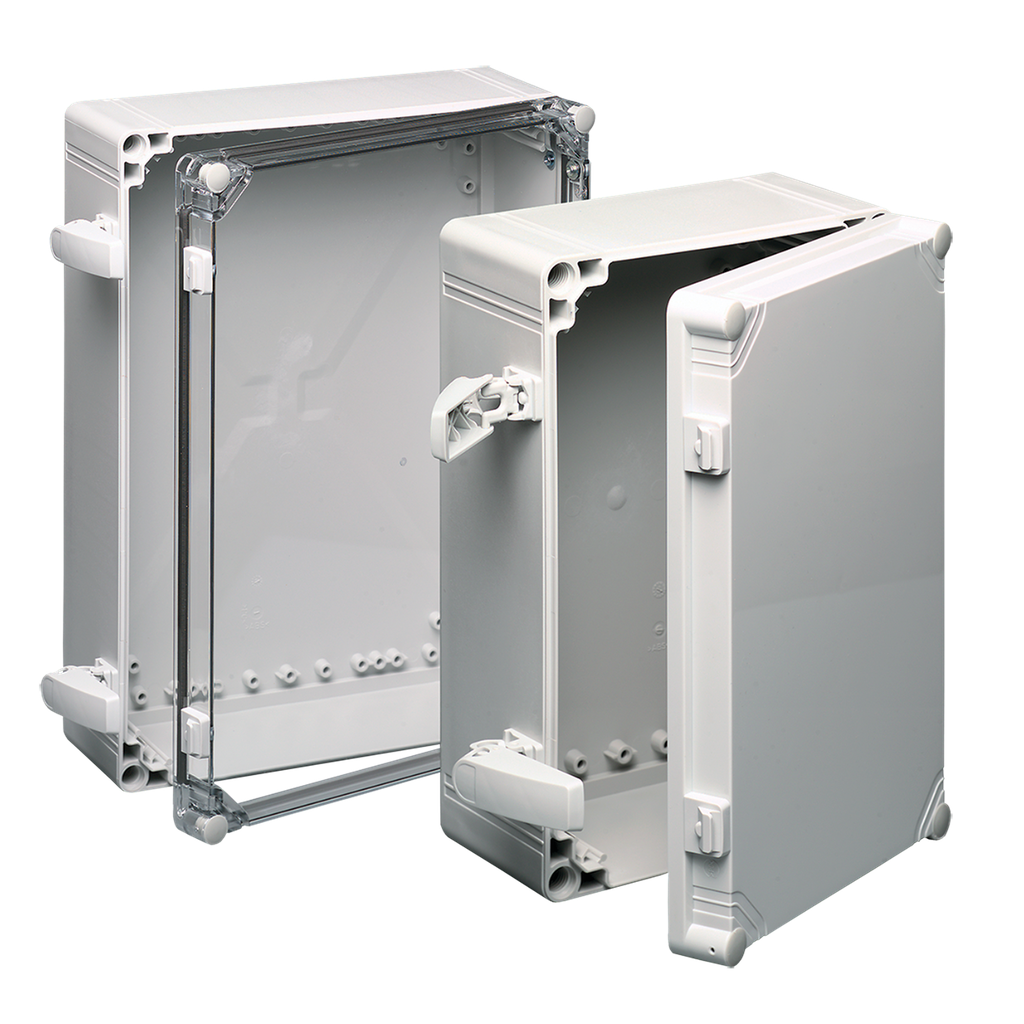

Product image for Hoffman Q302018PCIQRR QLINE I, Type 4X, 300x 200x 173mm, Polycarbonate
Email

Hoffman Q302018PCIQRR QLINE I, Type 4X, 300x 200x 173mm, Polycarbonate

Manufacturer: nVent Hoffman | Catalog # Q302018PCIQRR | North Coast Part # 800041
$274.34/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The largest-sized QLine enclosure, QLine I provides easy access and protects larger controls from corrosive environments. Choose from screw cover, hinge, internal mounting, variable depth and quick-release latch options to meet your design and security requirements. The ABS series shares the same features and similar physical properties as the polycarbonate but is a more economical, non-UL rated alternative.

Technical Information

Applications
Controls and Drives; Corrosive Environments
Color Coding
RAL 7035
Cover Style
Opaque
IP Rating
66
Material
Polycarbonate
Size
300x200x173mm
Standard
12,13,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,Enclosure Flammability Evaluated Per UL 508A,File No. E61997,NEMA/EEMAC Type 4,Polycarbonate Enclosure,Type 4,UL 508A Listed
Type
Feed-Through, Hinged Cover, Straight Section

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Qline™

General Product Info

12-Digit UPC
783510159665
Color
Light Gray
Finish
Smooth
GTiN
00783510159665
Product UPC
78351015966
Weight
4.7 lb

Dimensions

Depth
7.09 Inch
Height
7.87 Inch
Length
13 Inch
Thickness
4 mm
Width
11.81 in
Features
  • Body is impact-resistant polycarbonate for PCI series and ABS for ABI series
  • Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are ABS for ABI series
  • Polycarbonate and ABS material is easily punched, drilled, filed or sawed
  • Mounting holes molded directly under cover screws
  • Molded internal pads for mounting optional panels, rails and other components
  • Molded internal rails for mounting adjustable-depth panel kit
  • Screws provided for mounting optional panel
  • Optional extension rings are molded polycarbonate
  • Cover includes a molded-in hole for wire lead
  • Seamless foam-in-place gasket assures water-tight and dust-tight seal
  • Material is halogen free
  • Screw Cover Enclosures have easy-to-remove covers attached to body with strong, durable polyamide cross-point cover screws
  • Enclosures with Quick-Release Latches have polycarbonate hinges and polyester latches with a padlock provision
