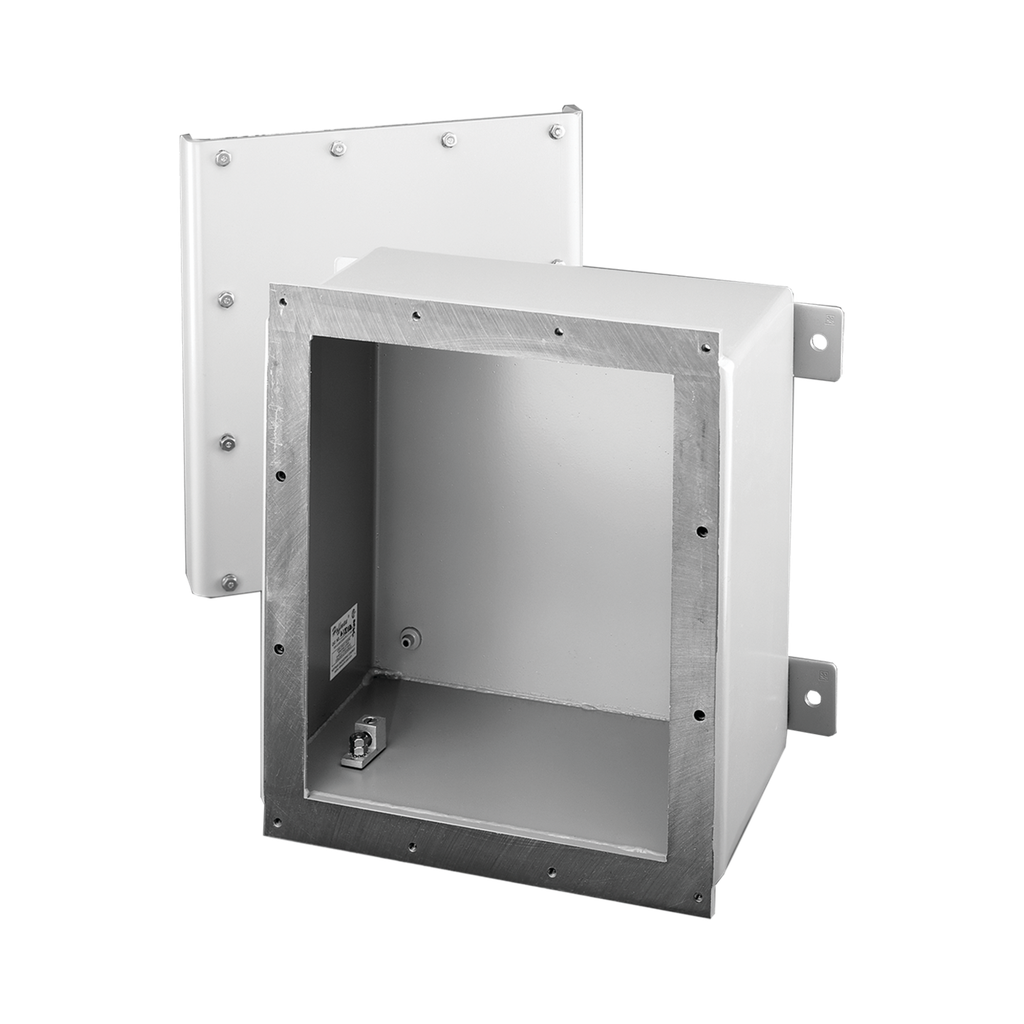

Product image for Hoffman A20D208 NEMA Type 9, 20" x 20" x 8", Gray, Steel
Email

Hoffman A20D208 NEMA Type 9, 20" x 20" x 8", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # A20D208 | North Coast Part # 801452
$8,624.31/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
For use in Class II Division 1 and 2 locations as defined in Article 500 of the National Electrical Code as having the presence of combustible dusts.

Technical Information

Applications
For use in Class II Division 1 and 2 Locations as Defined in Article 500 of the National Electrical Code as Having the Presence of Combustible Dusts
Body Thickness
4.8 mm
Color Coding
ANSI 61
Cover Type
Screw Latch, Hinged
Material
Steel
Mounting Type
Wall
Size
20.00x20.00x8.00 in
Standard
CSA Certified For Class II Division 1 And 2 Group E,CSA File No. 42186,F And G Locations,IEC 60529,IP60,NEMA/EEMAC Type 9,UL Class II Division 1 And 2 Group E,UL File No. E67456
Type
Single Door

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510321802
Color
ANSI 61 Gray
Finish
Powder Coated
GTiN
00783510321802
Product UPC
78351032180
Weight
128 lb

Dimensions

Depth
8 Inch
Height
20 Inch
Length
24-1/2 Inch
Width
20 in
Features
  • Ends are .38-in. (10-mm) steel plate to provide a minimum of 3.50 full threads for conduit sizes through 2.00 in. (51 mm)
  • Covers are .25-in. (6-mm) thick to allow mounting of NEMA 9 pushbuttons and pilot lights, which require threaded holes (3/4-14 NPSM thread)
  • \"Heavy duty cover hinges on enclosures when \"\"A\"\" is 20.00 in. (508 mm) or more\
  • Fiber gasket, mechanically attached to cover, assures dust-tight enclosure
  • Weldnuts or collar studs provided for mounting optional panel
