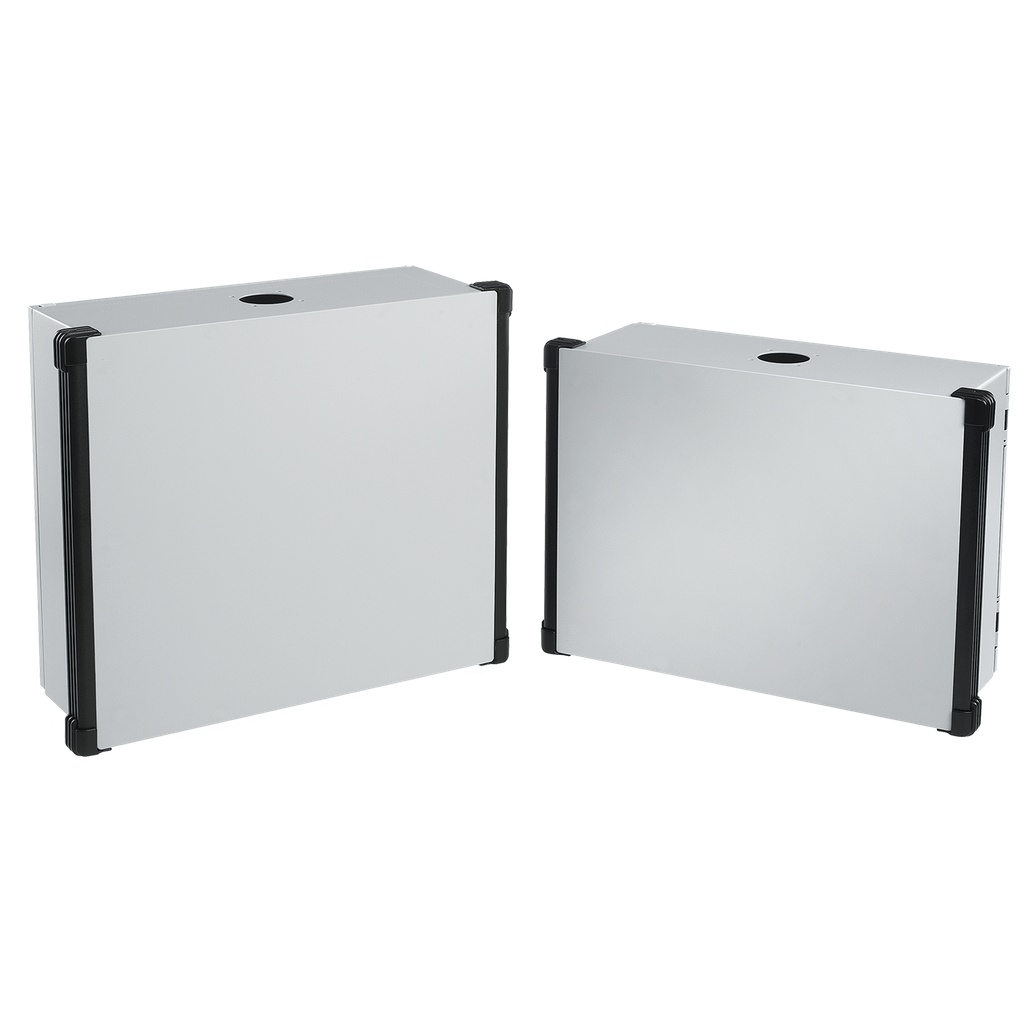

Product image for Hoffman CP354512B CONCEPT HMI, Type 4, 350x 450x 120mm, Lt Gray, Steel
Email

Hoffman CP354512B CONCEPT HMI, Type 4, 350x 450x 120mm, Lt Gray, Steel

Manufacturer: nVent Hoffman | Catalog # CP354512B | North Coast Part # 801648
$1,368.08/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
A traditional landscape-oriented HMI enclosure with handles made of light-gray steel, the Concept HMI Enclosure is unique among HMI enclosure systems when you need a range of customization options. This pendant- or pedestal-mounted system has many possible configurations and modifications, including a removable front plate that makes it easy to install HMI components, an optional door panel can be mounted in the hinged rear door and the ability to accommodate cutouts anywhere on the enclosure.

Technical Information

Applications
Controls and Drives
Color Coding
RAL 7035
Material
Steel
Size
350x450x120mm
Standard
12,CUL Listed Per CSA C22.2 No. 94,File No. E61997,File Number E61997,IEC 60529,IP66,NEMA Type 4,Type 4,UL 508A Listed
Type
HMI Enclosure Systems

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510151935
Color
Light Gray
Finish
Powder Coated
GTiN
00783510151935
Product UPC
78351015193
Weight
24.2 lb

Dimensions

Depth
4.72 Inch
Height
10.8 Inch
Length
25.1 Inch
Thickness
1.9 mm
Width
17.72 in
Features
  • Pre-drilled hole in top for pendant arm mounting
  • Pedestal mounting when enclosure is inverted
  • Integral aluminum handle extrusions have a comfort grip that extends the length of the profile; available in black or blue
  • Hinged rear corner-formed door has a single-point latch, seamless foam-in-place gasket and panel studs
  • Aluminum removable front plate is .125-in aluminum
  • Grounding stud on body; bonding provision on door
  • Simple easy-to-remove and install hinge pins with built-in captive clip
  • High-torque threadless studs and fasteners on door for mounting optional door panel
