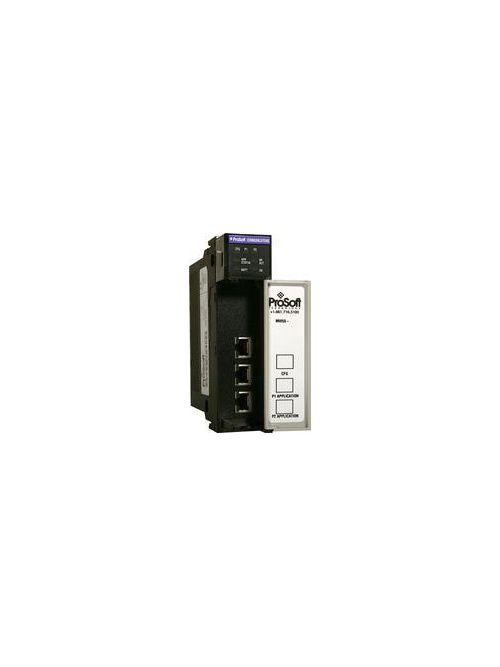

PROSOFT MVI56-BAS BASIC COMMUNICATION MODULE (DB/BAS COMPATIBLE)

Manufacturer: Prosoft Technology, Inc. | Catalog # MVI56-BAS | North Coast Part # 803149
$8,720.07/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
This single-slot module is a powerful solution that allows the large installed base of legacy BASIC programs for the 1771-DB and 1747-BAS modules to be migrated to the ControlLogix platform with minimal effort.

Technical Information

Amperage
800 mA at 5.1 VDC, 3 mA at 24 VDC
Applications
For Bar Code Scanner Interface, Weigh Scale Interfaces, Legacy ASCII Protocol Connections, Terminal Port Emulation, Printer Driver (Alarm/Status Printer)
Material
Aluminum
Memory
24064 Bytes of RAM
Temperature Rating
32 - 140 degrees F
Type
Basic

Manufacturer Information

Brand
Inrax
Sub Brand
InRAx®

General Product Info

12-Digit UPC
992231000426
Applications
  • The MVI56-BAS module allows existing legacy BASIC programs to be migrated from the 1771 and 1746 platforms to the ControlLogix platform. This provides interface capability for many devices using the ASCII interface to the ControlLogix backplane including:
  • Bar code scanner interfaces
  • Weigh scale interfaces
  • Legacy ASCII protocol connections
  • Terminal port emulation
  • Printer driver (alarm/status printer)
The MVI56-BAS module allows you to
  • Create BASIC programs to transfer data between the ControlLogix and the MVI56-BAS module
  • Create foreign device interface for specific applications and easily integrate the device with the ControlLogix processor
  • Interface to many devices that use ASCII interface to a ControlLogix backplane such as modems, printers, bar code readers, and scales
  • Save ControlLogix processor memory by running math algorithms
  • The module acts as DF1 full-duplex device or a DF1 half-duplex slave
Specifications
  • Single Slot - 1756 backplane compatible
  • Local or remote rack
  • The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
  • Ladder Logic is used for data transfer between module and processor.
  • Configuration data obtained through user-defined ladder. Sample ladder file included
  • Supports BASIC-52 Programming language
  • Stores BASIC programs on Compact Flash disk
  • Supports 24064 bytes of RAM
  • Easy BASIC program backup
Features and Benefits
  • The BASIC programs are stored in the MVI56-BAS Compact Flash disk allowing the user to easily backup the BASIC programs to another Compact Flash disk or to a local PC. Up to 24065 Bytes of RAM are available.
  • The user can either create the BASIC programs using the command line, then save it to Compact Flash, or create the program on a PC and download it to the MVI56-BAS module. The user can also configure the module to execute a BASIC program automatically at power up.
  • DH-485: DH-485 communication or BASIC program transfer
  • PRT1: ASCII communication or program port
  • PRT2: ASCII communication or DF1 communication
