Thomas & Betts RB14-10FS 18 to 14 AWG #10 Stud Blue Electrotinned Copper Nylon Insulated Fork Terminal Lug

Manufacturer: Thomas & Betts | Catalog # RB14-10FS | North Coast Part # 80335
$477.14/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

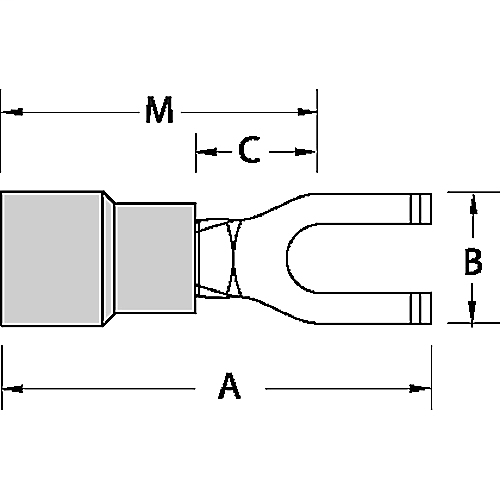

Nylon Insulated Fork Terminal with Flanged Tongue, Length .94 Inches, Width .38 Inches, Maximum Insulation .162, Bolt Hole #10, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated, 100 Pack

Technical Information

Applications
Insulated Varnish, Round Conductors
Conductor Size
18-14 AWG
Flamability Class
Rated V-2 Per UL94
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Flanged Tongue, Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210804149
Color
Blue
Finish
Tin Plated
GTiN
05414363158301
Product UPC
78621080414

Dimensions

Height
2.7 Inch
Thickness
.03 in
Width
1.3 in
Features
  • Fork terminals allow easy installation because screw needs only to be loosened. A flanged-tongue fork with turned up tips provide fo extra holding protection.
Certifications
  • CSA
  • UL
