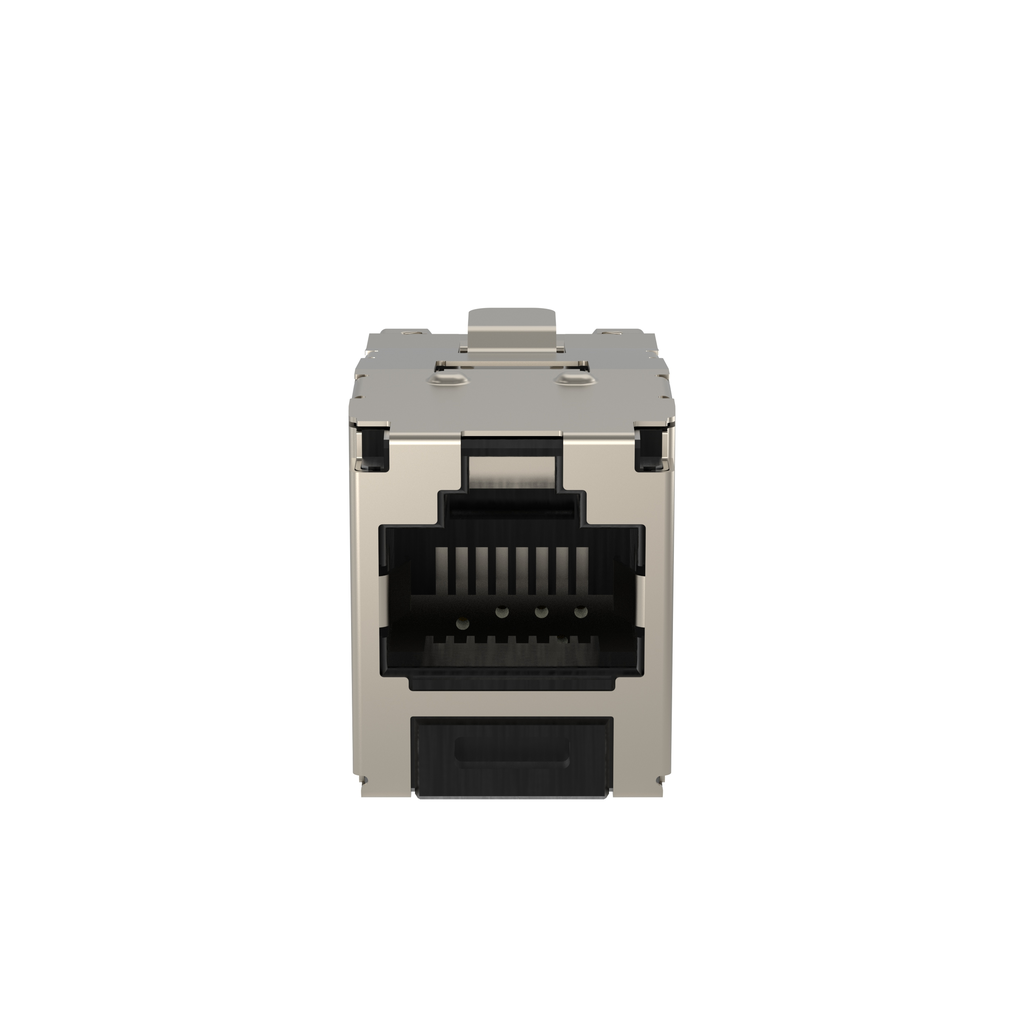

Product image for Panduit CJS5E88TGY Mini-Com® Shielded R
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit CJS5E88TGY Mini-Com® Shielded R

Manufacturer: Panduit | Catalog # CJS5E88TGY | North Coast Part # 804608
$17.48/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Brochure Product Catalog Page Installation / Instruction Manual
The Mini-Com® Cat 5e Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black.

Technical Information

Applications
Unshielded
Cable Size
22-26 AWG
Cable Type
Category 5E
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Shielded, Universal, TG Style, Bus Jack

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com, TX5e

General Product Info

12-Digit UPC
074983035625
Color
Black
GTiN
00074983035625
Product UPC
07498303562

Dimensions

Depth
1-1/2 Inch
Height
18.8 mm
Overall Length
38.1 mm
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 5e and ISO 11801 Class D Channel and Component Requirements at Swept Frequencies up to 100 MHz. Complies with ANSI/TIA-1096A, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, Meets IEC 60603-7, UL 1863 and UL 2043, RoHS Compliant
