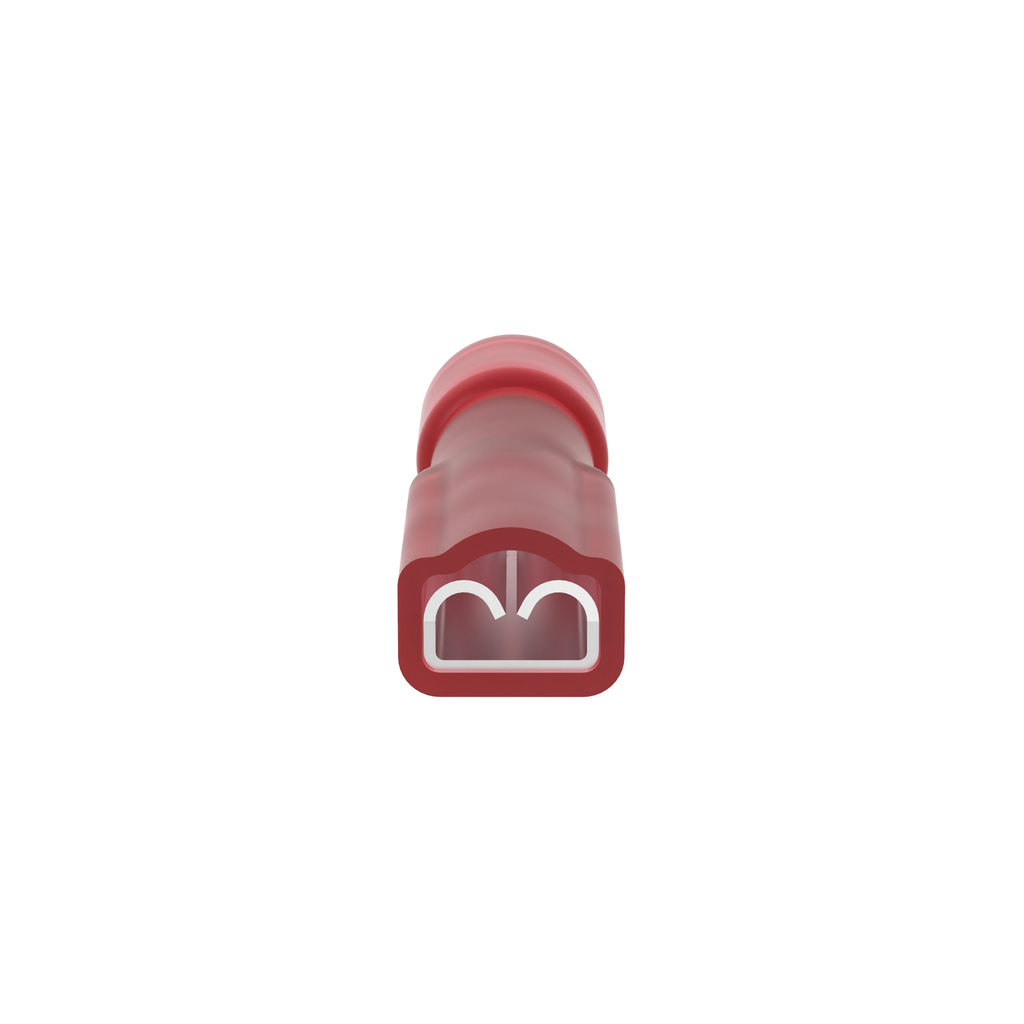

Product image for Panduit DNF18-111FIB-C Nylon Fully Insulated Female Disconnect
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Panduit DNF18-111FIB-C Nylon Fully Insulated Female Disconnect

Manufacturer: Panduit | Catalog # DNF18-111FIB-C | North Coast Part # 805213
$193.07/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page

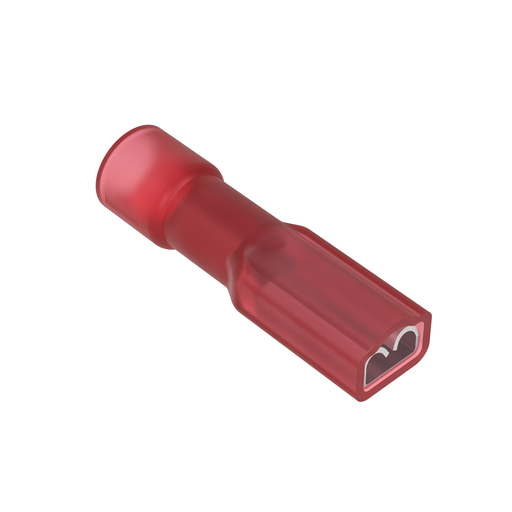

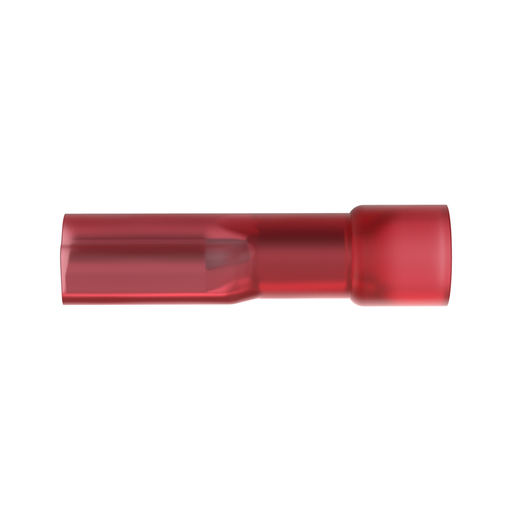

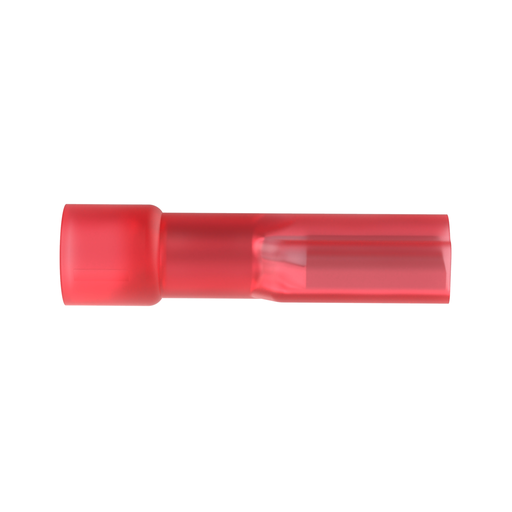

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.110 x 0.020" (2.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.71" (18.0 mm) long and 0.19" (4.8 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
22 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
0.4-1.0 mm

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983826759
Color
Red
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983826759
Product UPC
07498382675
UNSPSC
39121409

Dimensions

Height
0.16 Inch
Overall Length
0.71 in
Width
0.19 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Prop 65
  • No
