Broan 403004 2 Amp 120 Volt 30 x 17-1/2 x 6 Inch Stainless Steel Ducted Range Hood

Manufacturer: Broan | Catalog # 403004 | North Coast Part # 806270
$192.47/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

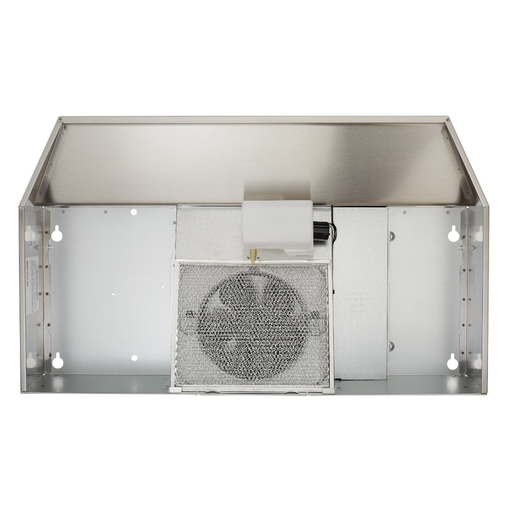

The Broan 40000 series is made for a wide range of installations and comes in a variety of appliance matching colors. The durable under cabinet hood installs as 3-1/4 in. x 10 in. ducted opening only and ducts either vertically or horizontally. The hood is equipped with a 210 MAX Blower CFM designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top, and control switches for fan speed and light activation. Includes duct adapter with built-in damper.

Technical Information

Amperage
2 Amp
Duct Shape
Rectangular
Indoor Outdoor
No
Light Type
Incandescent
Material
Steel
Mounting Type
Under-Cabinet
Nightlight
No
Style
Traditional
Voltage
120 Volt
Wattage
240 Watt

Manufacturer Information

Brand
Broan-NuTone

General Product Info

12-Digit UPC
026715010820
Color
Stainless Steel
GTiN
00026715010820
Product Series
Economy
Product UPC
02671501082
Weight
10.89 lb

Dimensions

Height
6 Inch
Length
17-1/2 Inch
Warranty Length
1 yr
Width
29.875 in

Certifications and Compliance

Country of Origin
USA
Features
  • Externally vented range hood offers powerful performance for your cooking needs
  • Simple to use rocker fan switch and separate rocker light switch offer easy control
  • 2 speed fan helps you tackle a variety of venting jobs
  • 210 Max Blower CFM helps quickly remove smoke and cooking odors from the air
  • Top or rear exhaust option lets you connect the ductwork in the most convenient way for you

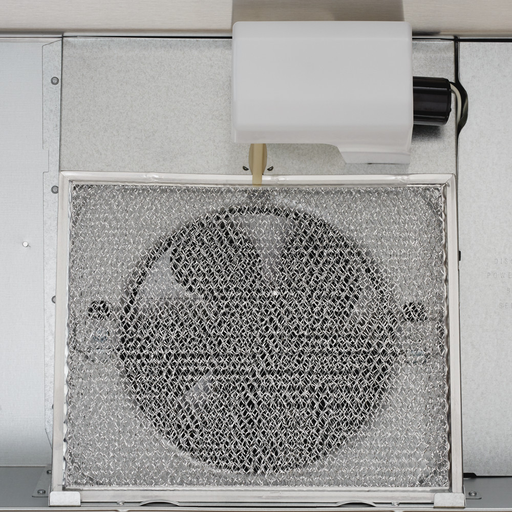

  • Aluminum mesh filter is removable and dishwasher safe for easy cleaning and maintenance
  • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)
  • Installs as 3-1/4 in. x 10 in. ducted with included duct connector and built-in damper
  • Mitered sides and hemmed bottom for safety and good looks
  • Limited 1-year warranty
  • UL listed and HVI-2100 certified for your safety and protection
  • Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
  • Broan under-cabinet range hood with 210 MAX Blower CFM
  • 30 in. SS meets ADA compliance standards with remote operation
  • Aluminum mesh filter is easy to clean, dishwasher safe
Includes
  • Damper
  • Filter(s)
  • Fan
