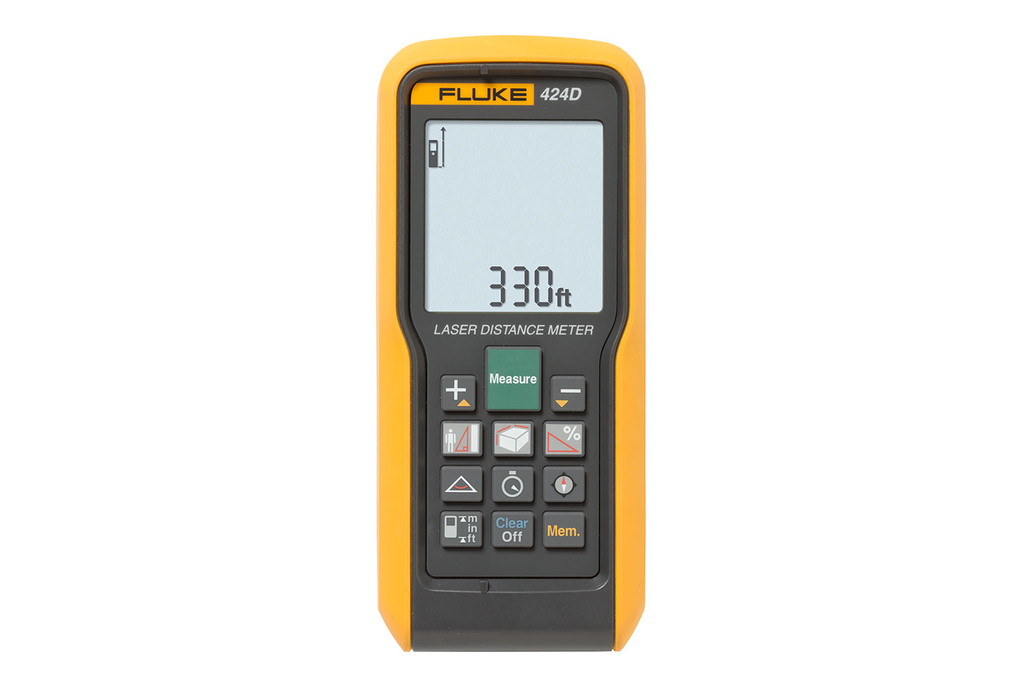

Product image for FLK FLUKE-424D LASER DISTANCE M - 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

FLK FLUKE-424D LASER DISTANCE M - 1

Manufacturer: Fluke | Catalog # FLUKE-424D | North Coast Part # 808873
$750.50/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations. It extends your measurement reach to 100 meters (330 feet). It offers a bigger, 4-line display, a built-in compass, and a 180. inclination sensor for leveling and height tracking.

Technical Information

Accuracy
Distance: 1 mm; Tilt: 0.2
Applications
Point and shoot distance and tilt measuring
Battery Type
2 x AAA 1.5 V NEDA 24A/IEC LR03 V
Range
Range At Leica Target Plate GZM26: 100 m / 330 ft; Typical range: 80 m / 260 ft; Range at unfavorable condition: 60 m / 195 ft; Tilt: 360
Type
Laser Distance Meter

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969613576
GTiN
00095969613576
Product UPC
09596961357
Key Features
  • Versatile laser distance meter that instantly measures up to 100 meters (330 feet) with one-button point-and-click operation
  • Quickly calculates area (square feet/meters) and volume
  • Includes 180° inclination sensor for leveling and height tracking
  • Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements
Product Overview
  • Fluke 424D Laser Distance Meter delivers a full measure of sophisticated features
  • The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations and reduce errors. Just point and click to instantly measure up to 100 meters (330 ft.), accurate to + 1 mm. No scales to interpret or misread. The extra bright laser supports easy targeting even at longer distances. Extra features like a 180 inclination sensor, the corner angle feature, and a built-in compass make it easy to get accurate measurements in hard-to-reach locations. You'll be able to see the results more clearly on the large, four-line backlit display. No matter your job, the 424D laser distance meter will help you do the work of two people on your own.
  • Other helpful features:
Other Useful Features
  • Provides a compass \"heading\" for distance measurement
  • Provides easy to-use addition and subtraction function
  • Includes automated end-piece correction. When measuring from an edge or corner, a built-in sensor detects the position of this bracket and automatically changes the reference point.
  • Provides audible keypad feedback
  • Offers improved visibility with a bigger, 4-line backlit display
  • Improved battery life of 5000 measurements with automatic shut-off feature
  • Offers minimum/maximum tracking to measure the rooms diagonal and horizontal distance from a stable measurement point
  • Allows mounting on a tripod for stable long distance measurements
  • Includes stake out function for marking off defined measured lengths
  • Stores the last twenty measurements for quick recall
  • Strong environmental protection with IP54 (water spray and dust proof) sealing
  • Powered by two AAA batteries
  • Comes with carrying pouch and three-year warranty -30-
Includes
  • Two AAA batteries
  • Users manual on CD
  • Quick reference guide
  • Vinyl carrying pouch
  • Lanyard
  • Three-year warranty
Additional Features
  • 1. Applies for 100% target reflectivity (white painted wall), low background illumination, 25°C.2. Applies for 10 to 500% target reflectivity, high background illumination, -10°C to +50°C.3. Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m.4. Applies for 100% target reflectivity, background illumination between 10'000 lux and 30'000 lux.5. After user calibration. Additional angle related deviation of 0.01° per degree up to 45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by 0.1°.
