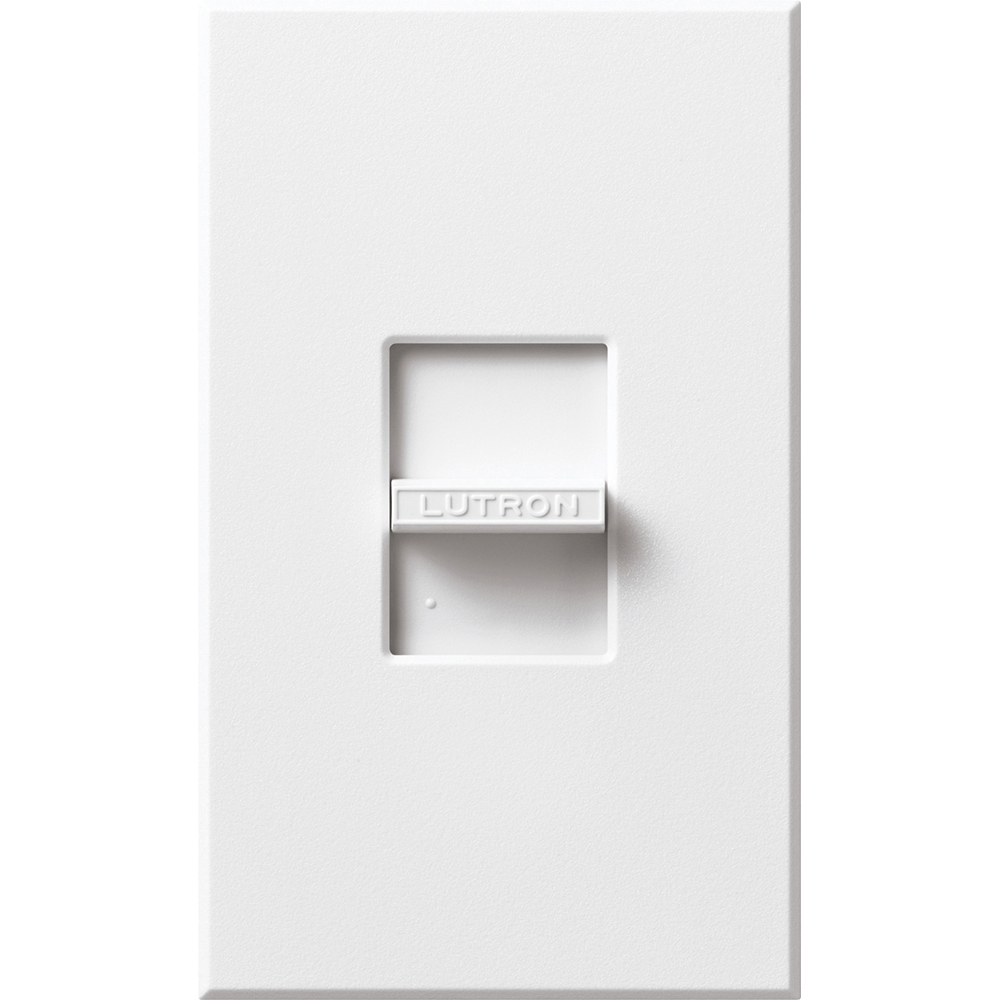

Product image for Lutron NLV-600-WH 120 Volt 600 VA White 1-Pole Magnetic Low Voltage Slide Dimmer
Image thumbnail 0
Image thumbnail 1
Email

Lutron NLV-600-WH 120 Volt 600 VA White 1-Pole Magnetic Low Voltage Slide Dimmer

Manufacturer: Lutron | Catalog # NLV-600-WH | North Coast Part # 80913
$232.15/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Controls 600 VA/450 W magnetic low-voltage or neon/cold cathode loads. Slide up to brighten, down to dim.

Technical Information

Actuator
Slide Switch
Applications
Lighting Control
Connection Type
Wire Leads,Wire Leads
Enclosure
Plastic
Enclosure Material
Plastic
Frequency
60 Hz
Insulation Material
Plastic
Material
Metal
Mounting Type
Wall Box, Flush
Number of Poles
1 Pole
Operating Temperature
32 To 104 degrees F
Power Rating
450 W
Size
70 in
Standard
ANSI/IEEE Std. C62.41-1980,UL CSA NOM
TC Connection
Wire Leads
Temperature Rating
0 degrees C to 40 degrees C
Terminal Type
Wire Lead
Type
1-Pole
Voltage
120 Volt
Wattage
450 Watt

Manufacturer Information

Brand
Lutron Electronics Company
Sub Brand
Nova®

General Product Info

12-Digit UPC
027557370905
Color
White
Finish
Matte
GTiN
00027557370905
Product UPC
02755737090

Certifications and Compliance

Country of Origin
Saint Kitts and Nevis
Features
  • Slide adjusts light to suit any activity
  • Full family of controls plus matching fan controls, switches and wiring devices
  • Voltage compensation maintains stable light levels, despite line voltage variations under common wallplate
  • Mechanical air-gap to disconnect load power
  • 100% factory tested
  • Coordinating wallplate included
  • Controls 600 VA (450 W) magnetic low-voltage or neon/cold cathode loads
  • Slide up to brighten, down to dim.
Standards and Certifications
  • UL
  • CSA
  • NOM
  • ISO
  • ANSI/IEEE Std. C62.41-1980
