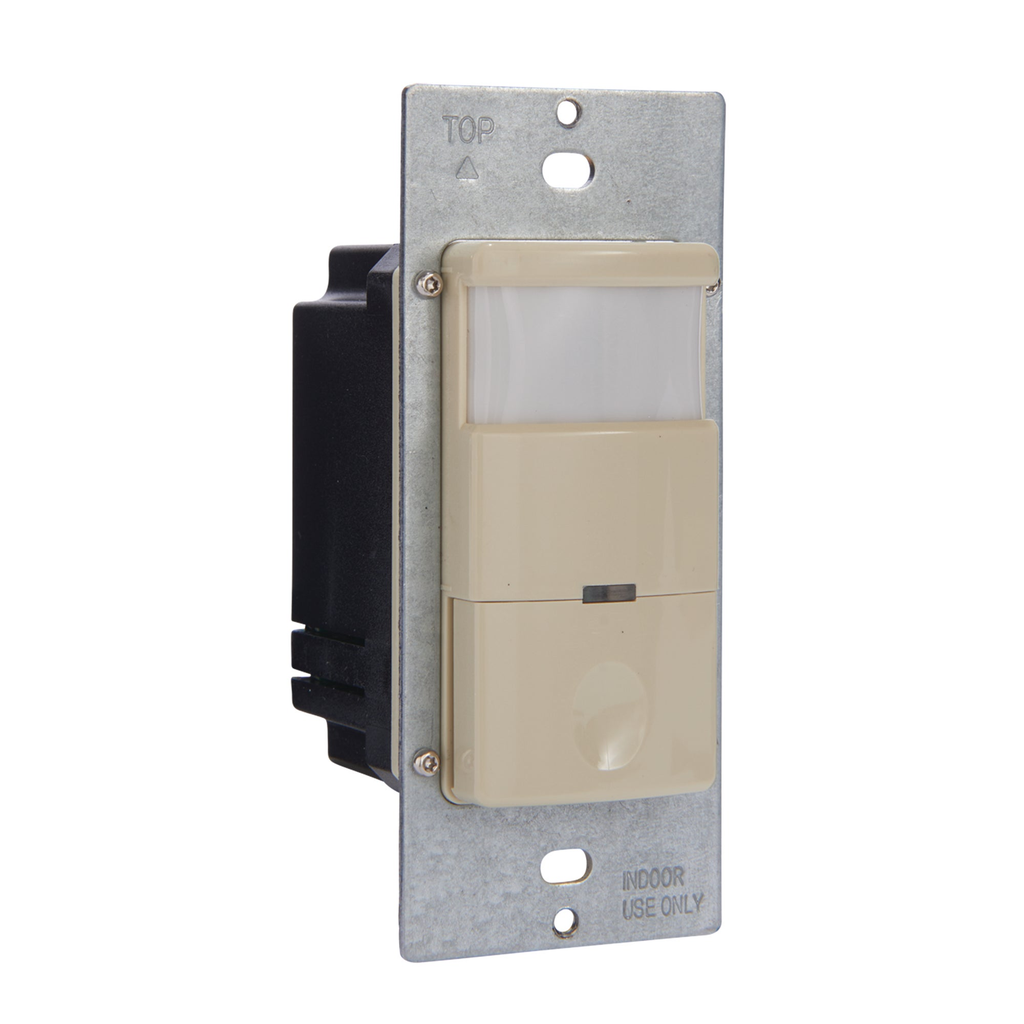

Product image for Intermatic IOS-DSR-IV PIR VAC/OCC SENSOR 180 DEG SNGL REL IV
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

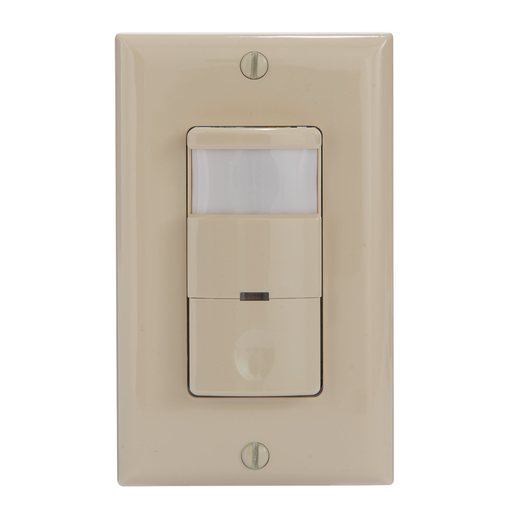

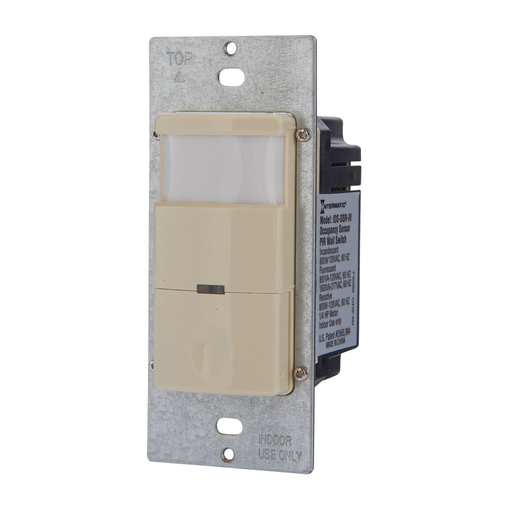

Intermatic IOS-DSR-IV PIR VAC/OCC SENSOR 180 DEG SNGL REL IV

Manufacturer: Intermatic | Catalog # IOS-DSR-IV | North Coast Part # 810261
$132.80/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
These in-wall switches detect presence using PIR sensing technology. They have a self-adjusting feature that optimizes delay-off time based on actual occupancy.

Technical Information

Applications
Indoor Sensing Control
Indicator
LED
Input Voltage
120/277 V
Load Type
1600 VA @ 277 VAC (Fluorescent),800 VA @ 120 VAC,800 WTT @ 120 VAC (Tungsten)
Max Operating Temperature
131 degrees F
Min Operating Temperature
32 degrees F
Mounting Type
In-Wall
Number of Circuits
1
Operating Cycles
20000
Operating Temperature
131 degrees F
Sensing Range
180 DEG 1200 SQ-FT
Standard
CULus Listed,UL/cUL Listed
Type
Electronic and Magnetic

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275125193
Color
Ivory
GTiN
00078275125193
Product UPC
07827512519
Weight
0.4 lb

Dimensions

Depth
1-3/4 Inch
Height
2-5/8 Inch
Warranty Length
5 yr
Width
1.313 in

Certifications and Compliance

Country of Origin
China
Features
  • Passive Infrared (PIR) sensing for presence detection
  • Coverage: 180, 1200 ft2 with non-obstructed views
  • User-selectable Vacancy or Occupancy switch mode
  • Zero-crossing technology for long life and performance
  • Automatic self-adaptive time delay based on occupancy patterns
  • IOS-DSR/DDR models feature optional walk-through detection mode
  • Adjustable ambient light sensor override
  • Incandescent/Fluorescent/CFL/LED compatible
  • IOS-DOV models require a neutral connection
  • Fits standard decorator wall plate (included)
