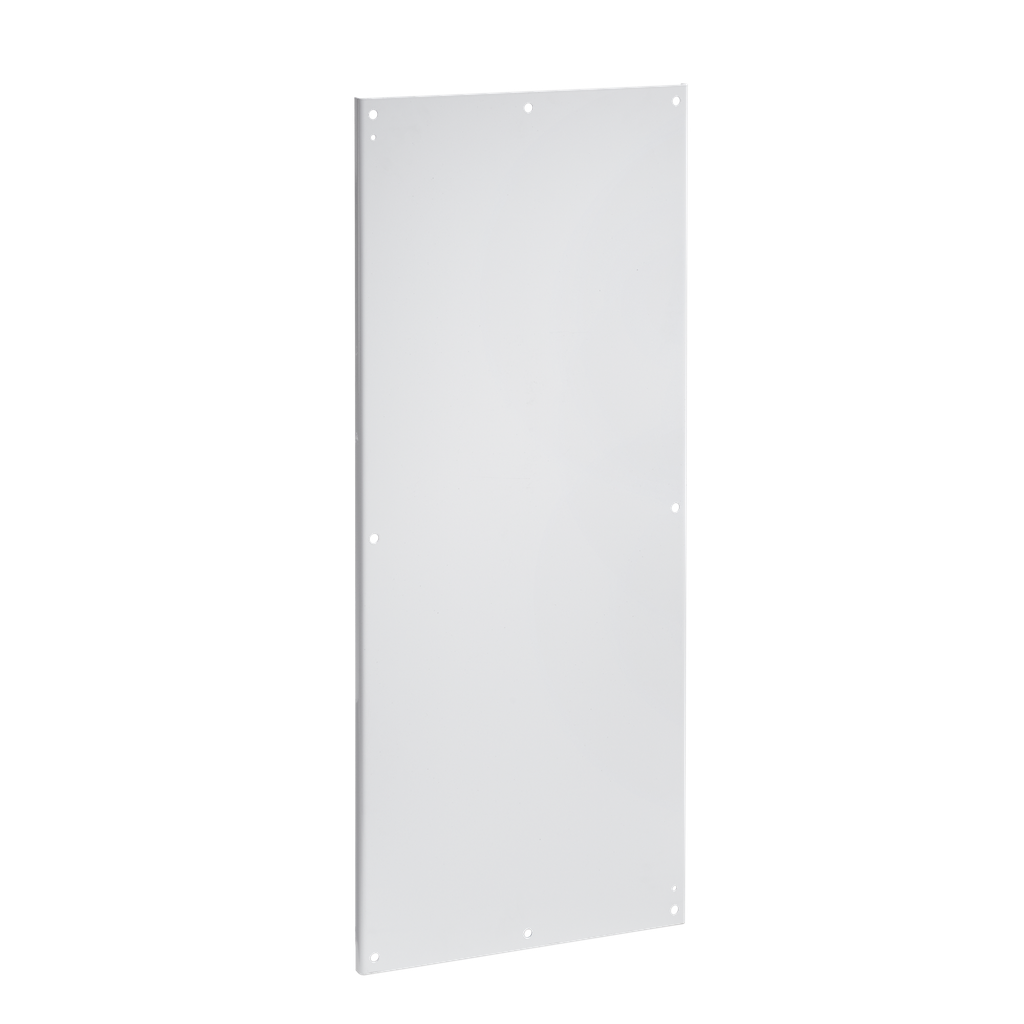

Product image for Hoffman A72P60F1 72" x 60" Full Panel for Free-Stand Type 4, 4X & 12 Single- and Dual-Access Two-Door Enclosures with Mounting Channel, White Painted Steel

Email

Hoffman A72P60F1 72" x 60" Full Panel for Free-Stand Type 4, 4X & 12 Single- and Dual-Access Two-Door Enclosures with Mounting Channel, White Painted Steel

Manufacturer: nVent Hoffman | Catalog # A72P60F1 | North Coast Part # 81916

$1,584.48/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Friday 5:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Panel for Free-Stand Single- and Dual-Access Two-Door Enclosures with Mounting Channel. Panels can be positioned anywhere along horizontal mounting channels (see Sections B-B for limitations). Half-length panels can be located in the upper or lower portion of the enclosure. Some assembly is required. Center support is furnished with each full-length or half-length panel for two-door enclosures. The center support attaches to the top and bottom mounting channels and can be positioned from front to back in the enclosure. The center support can be replaced with heavy duty panel supports to support panels when heavy equipment is installed.

Technical Information

Applications
For Two-Door Single Access and Two-Door Dual Access Free-Stand Type 4, 4X and 12 Enclosures with Mounting Channel are 10 Gauge Steel
Material
Steel
Size
fits 72.06x60.06 in
Type
Panels and Panel Accessories

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510270407
Color
White
Finish
Powder Coated
GTiN
00783510270407
Product UPC
78351027040
Used With
72.06 x 60.06 in Free-Stand Type 4, 4X and 12 Single and Dual-Access Two-Door Enclosures with Mounting Channel
Weight
154 lb

Dimensions

Height
1524 mm
Length
62 Inch
Thickness
3.04 mm
Width
1422 mm
Features
  • Available in Full-Length and Half-Length
  • Plated mounting hardware is provided
