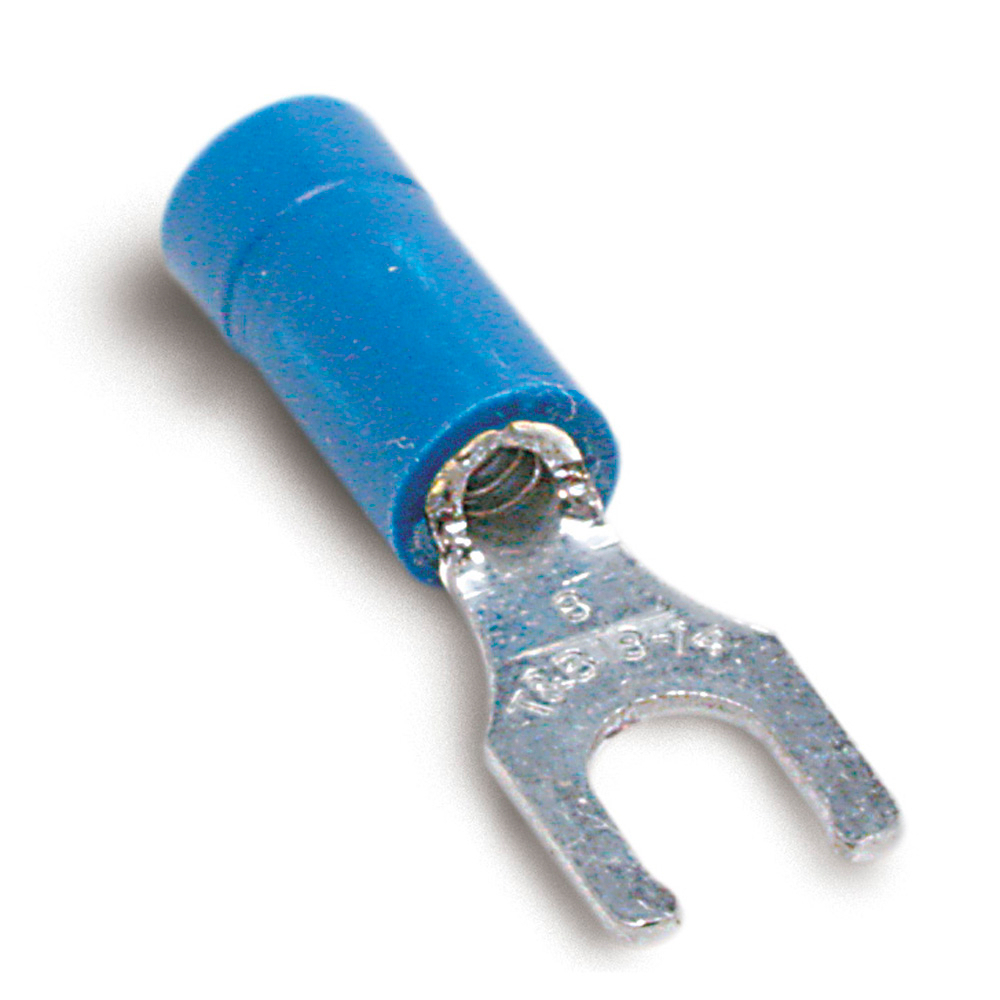

Product image for Thomas & Betts 14RB-6FL 18 to 14 AWG #6 Stud Blue Electrotinned Copper Vinyl Insulated Locking Fork Terminal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Thomas & Betts 14RB-6FL 18 to 14 AWG #6 Stud Blue Electrotinned Copper Vinyl Insulated Locking Fork Terminal

Manufacturer: Thomas & Betts | Catalog # 14RB-6FL | North Coast Part # 82140
$281.38/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Auburn Opens Thursday 4:00am PT
0 available

For Delivery

Not in local stock *
Check another branch
*Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

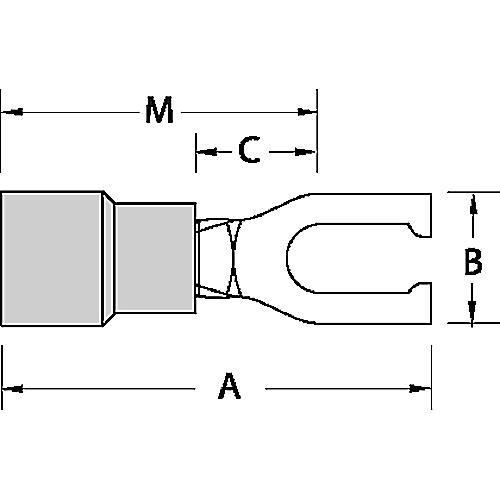

Vinyl-Insulated Locking Fork Terminal, Length .97 Inches, Width .25 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Locking, Long Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210806525
Color
Blue
Finish
Tin Plated
GTiN
05414363135074
Product UPC
78621080652
Used With
Round Conductors

Dimensions

Height
2 Inch
Thickness
.03 in
Width
1.1 in
Features
  • Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.
Certifications
  • CSA
  • UL
