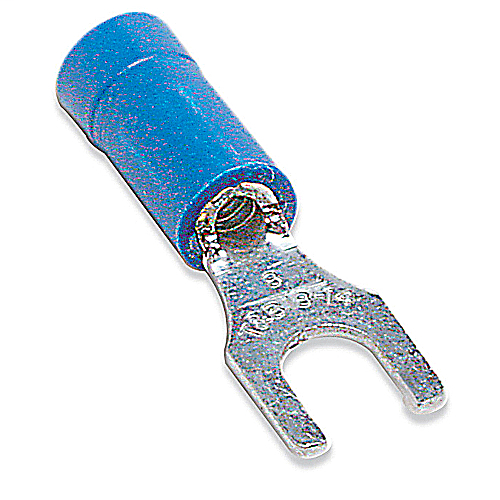

Thomas & Betts 14RB-6FS 18-14 Blue Insulated Nylon Fork Terminal

Manufacturer: Thomas & Betts | Catalog # 14RB-6FS | North Coast Part # 82188
$220.17/c (100 ea)
ea
Order in multiples of 100 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet

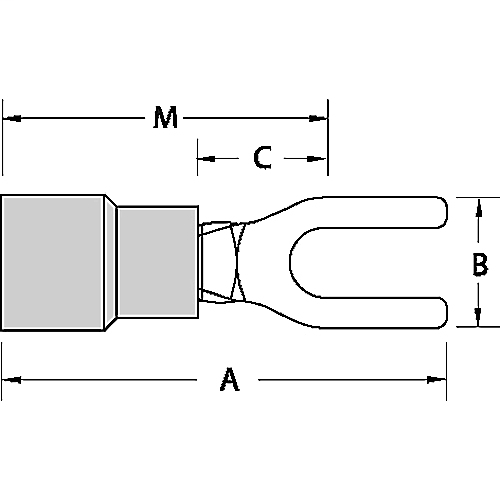

Vinyl-Insulated Fork Terminal, Length .89 Inches, Width .30 Inches, Maximum Insulation .170, Bolt Hole #6, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RB
Type
Vinyl Insulated Fork Terminal
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210805481
Color
Blue
Finish
Tin Plated
GTiN
05414363077015
Product UPC
78621080548

Dimensions

Height
2.4 Inch
Length
0.89 Inch
Thickness
.03 in
Width
3.3 in
Certifications
  • CSA
  • UL
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
