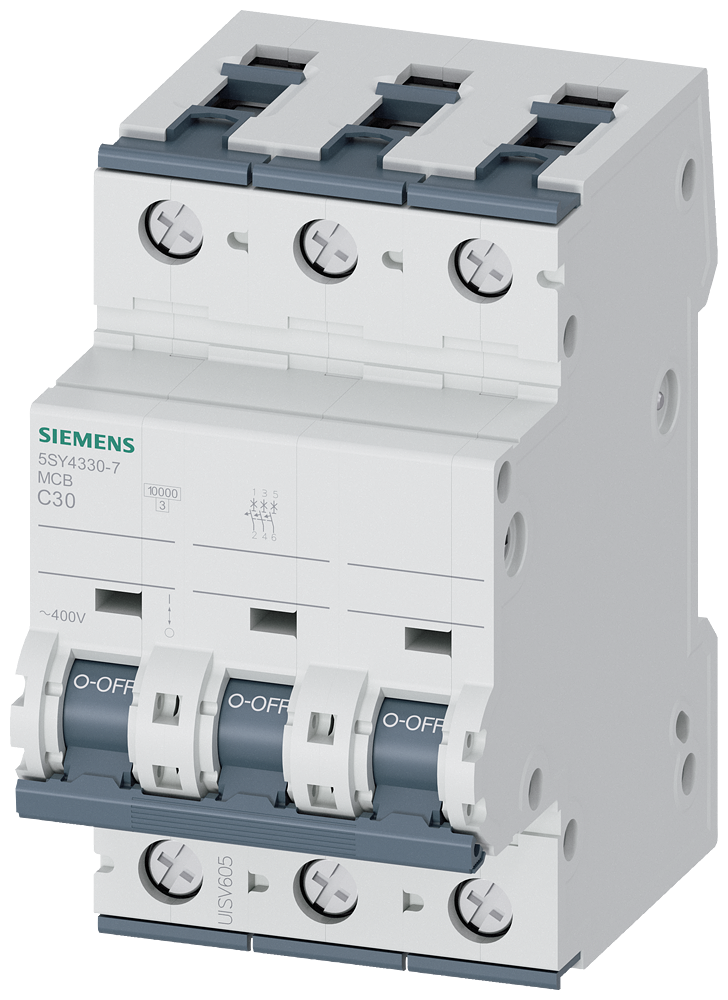

Product image for Siemens 5SY4330-7 30 Amp C Curve 3-Pole Supplementary Protector
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

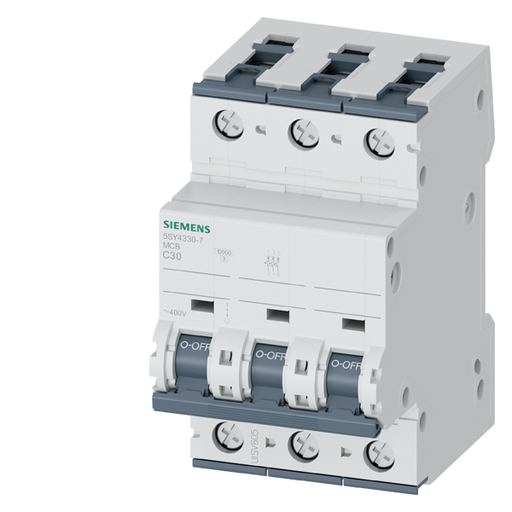

Siemens 5SY4330-7 30 Amp C Curve 3-Pole Supplementary Protector

Manufacturer: Siemens | Catalog # 5SY4330-7 | North Coast Part # 825096
$152.89/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Type 5SY4 Miniature Circuit Breaker, 3 Poles, 480/277V, 30A, 5kA, standard frame, Magnetic trip point 5 to 10 In

Technical Information

Amperage
30 Amp
Applications
SUPPLEMENTARY PROTECTION
Connection Type
Identical Wire Screw Connections On Line And Load Side.
Current
30 Amp
Frequency
50 Hz
Interrupt Rating
5 kAIC
Material
Thermoplastic
Mounting Type
DIN RAIL
Number of Poles
3 Pole
Response Time
N/A
Short Circuit Current
5 kA
Size
N/A
Standard
UL 1077,CE,EN 60 947-2,CSA 22.2 NO. 235,EN 60 898,IEC
TC Connection
Identical wire screw connections on line and load side.
Type
Miniature Circuit Breaker
Voltage
400 Volt

Manufacturer Information

Brand
Siemens Canada
Sub Brand
SENTRON

General Product Info

12-Digit UPC
754554889429
Class
C
GTiN
00754554889429
Product UPC
75455488942
Weight
1.030 lb

Dimensions

Height
3-1/4 Inch
Length
3.9 Inch
Width
2.300 in

Certifications and Compliance

Country of Origin
Germany

Certifications & Compliance

Green Distribution CO2
0.041 kg
Green End-of-Life CO2
0.506 kg
Green Manufacturing CO2
1.616 kg
Green Total CO2
46.365 kg
Green Transport-to-DC CO2
0.369 kg
Green Use-Phase CO2
43.833 kg
