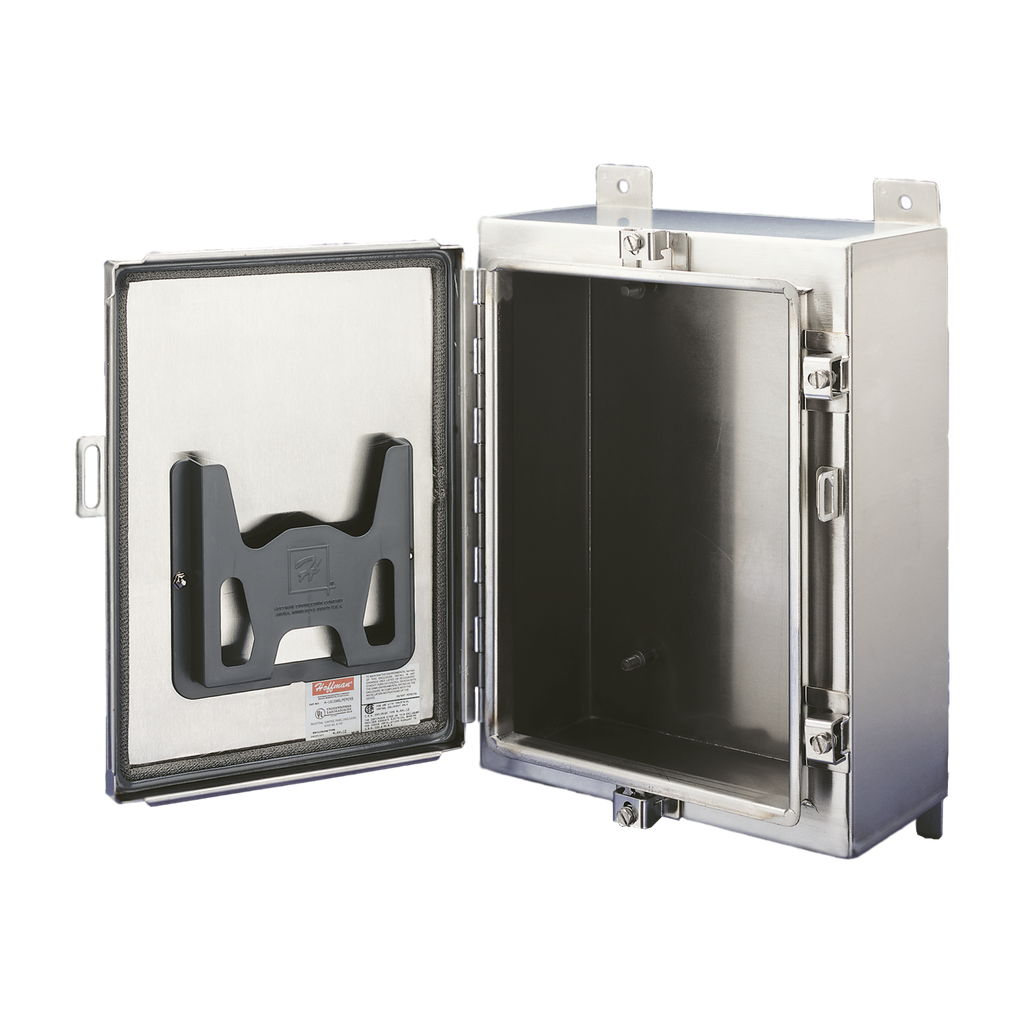

Product image for Hoffman A201606LPEMCSS Continuous Hinge with Clamps, EMC, Type 4X, 20" x 16" x 6", SS Type 304
Email

Hoffman A201606LPEMCSS Continuous Hinge with Clamps, EMC, Type 4X, 20" x 16" x 6", SS Type 304

Manufacturer: nVent Hoffman | Catalog # A201606LPEMCSS | North Coast Part # 826037
$3,500.40/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Ideal for indoor or outdoor EMC applications to contain larger controls in corrosive environments. Features a stainless steel, woven-mesh encased gasket to keep out contaminants and provide EMI/RFI shielding to internal components.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
IP Rating
66
Material
Stainless Steel
Size
20.00x16.00x6.00 in
Standard
12,13,4,4X,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No 94,File No. E61997,IEC 60529,IP66,NEMA/EEMAC Type 3,Type 4,UL 508A Listed
Type
Stainless Steel Wall Mounted Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510258696
Color
Unpainted
Finish
Brushed
GTiN
00783510258696
Product UPC
78351025869
Weight
29.9 lb

Dimensions

Depth
6 Inch
Height
20 Inch
Length
25.1 Inch
Thickness
1.98 mm
Width
16 in
Features
  • EMC design helps contain stray electromagnetic interference (EMI) signals produced by internal components and to shield those components from external EMI/RFI interference
  • Seams continuously welded and ground smooth
  • Seamless foam-in-place gasket adjacent to woven model EMC mesh gasket
  • Rolled lip around three sides of door
  • Stainless steel door clamp assemblies
  • Hasp and staple for padlocking
  • Removable door with continuous hinge
  • Data pocket is high impact thermoplastic
  • Collar studs provided for mounting optional panels
  • Bonding provision on door; grounding stud on body
