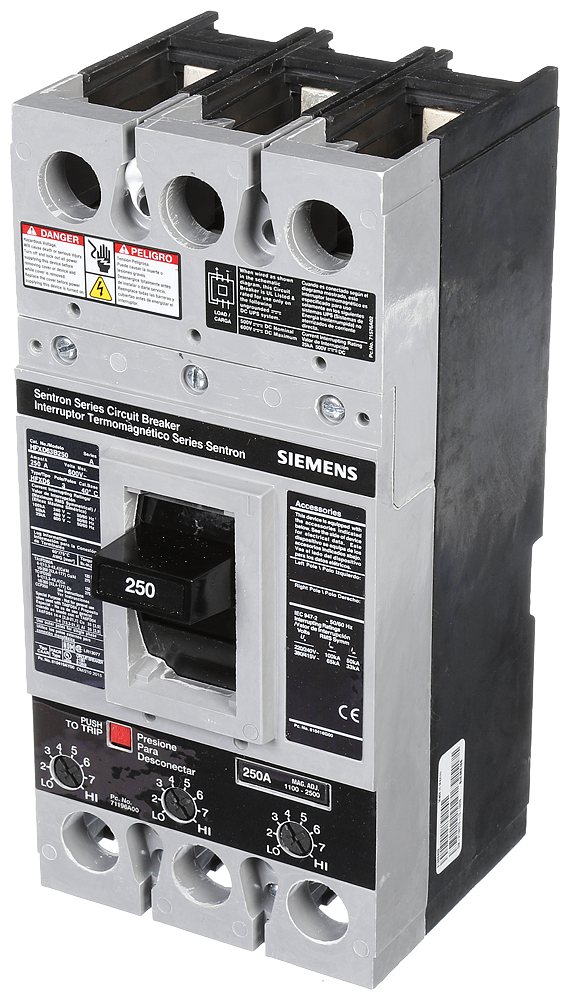

Product image for Siemens HFXD63B250 3-Pole 250 Amp 600 VAC 25 kA Molded Case Circuit Breaker
Image thumbnail 0
Image thumbnail 1
Email

Siemens HFXD63B250 3-Pole 250 Amp 600 VAC 25 kA Molded Case Circuit Breaker

Manufacturer: Siemens | Catalog # HFXD63B250 | North Coast Part # 830325
$6,450.38/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY. 250A 3-POLE (25KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 4.50 x 9.5 x 4.00.

Technical Information

Actuator
Varying
Amperage
250 Amp
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
25 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40degrees C
Standard
HACR
TC Connection
N/A
Trip Range
1100-2500
Trip Type
Thermal Magnetic
Type
HFXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643318519
GTiN
00783643318519
Product UPC
78364331851
Weight
8.950 lb

Dimensions

Height
11.1 Inch
Length
11.1 Inch
Width
5.500 in

Certifications and Compliance

Country of Origin
Mexico
