Burndy KLU70 Copper Terminal, Offset Tongue, 1 Hole, 8 AWG (Sol)-2 AWG (Str), 1/4" Stud, 1 Screw

Manufacturer: Burndy | Catalog # KLU70 | North Coast Part # 83103
$4.61/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Copper Terminal, Offset Tongue, 1 Hole, 8 AWG (Sol)-2 AWG (Str), 1/4" Stud, 1 Screw.

Technical Information

Applications
For Joining a Wide Range of Copper Cable to Equipment Pads or Bar
Bolt Size
5/16 in
Conductor Size
8-2 AWG
Connection Type
Pressure Bar
Direct Burial?
No
Material
Copper
Mounting Hole Size
1/4 in
Plated?
No
Plating Type
Unplated
Screw Type
Slot
Standard
3R,C22.2 No. 0.4,C22.2 No. 18,C22.2 No. 94 Enclosures Types 1,UL 514C,UL467,UL50 Enclosures Types 1
Stud Size
1/4 in
Type
KLU, Offset Tongue

Manufacturer Information

Brand
Burndy
Sub Brand
Scrulug™

General Product Info

12-Digit UPC
781810351383
Finish
Copper
GTiN
00781810351383
Product UPC
78181035138

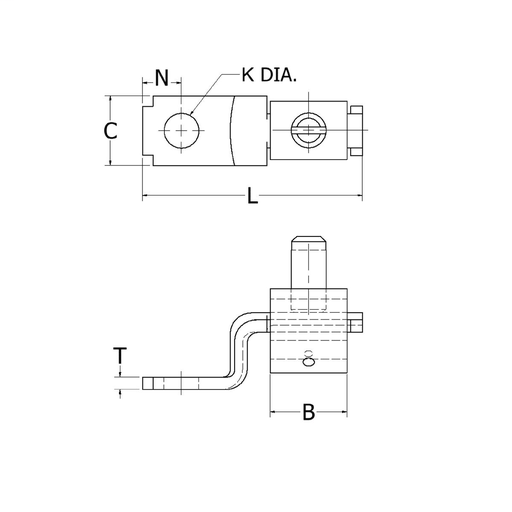

Dimensions

Height
1 Inch
Hole Size
0.26 in
Length
1.55 Inch
Overall Length
39 mm
Pad Width
0.47 in
Width
0.47 in

Certifications and Compliance

Country of Origin
India
CSA
No
Features
  • Range-taking design reduces SKUs required in inventory
  • High conductivity copper alloy for long lasting reliable contact
  • Compact design, easy to install
  • Slot Robertson screw, hex head, hex socket bolt require no special installation tools
