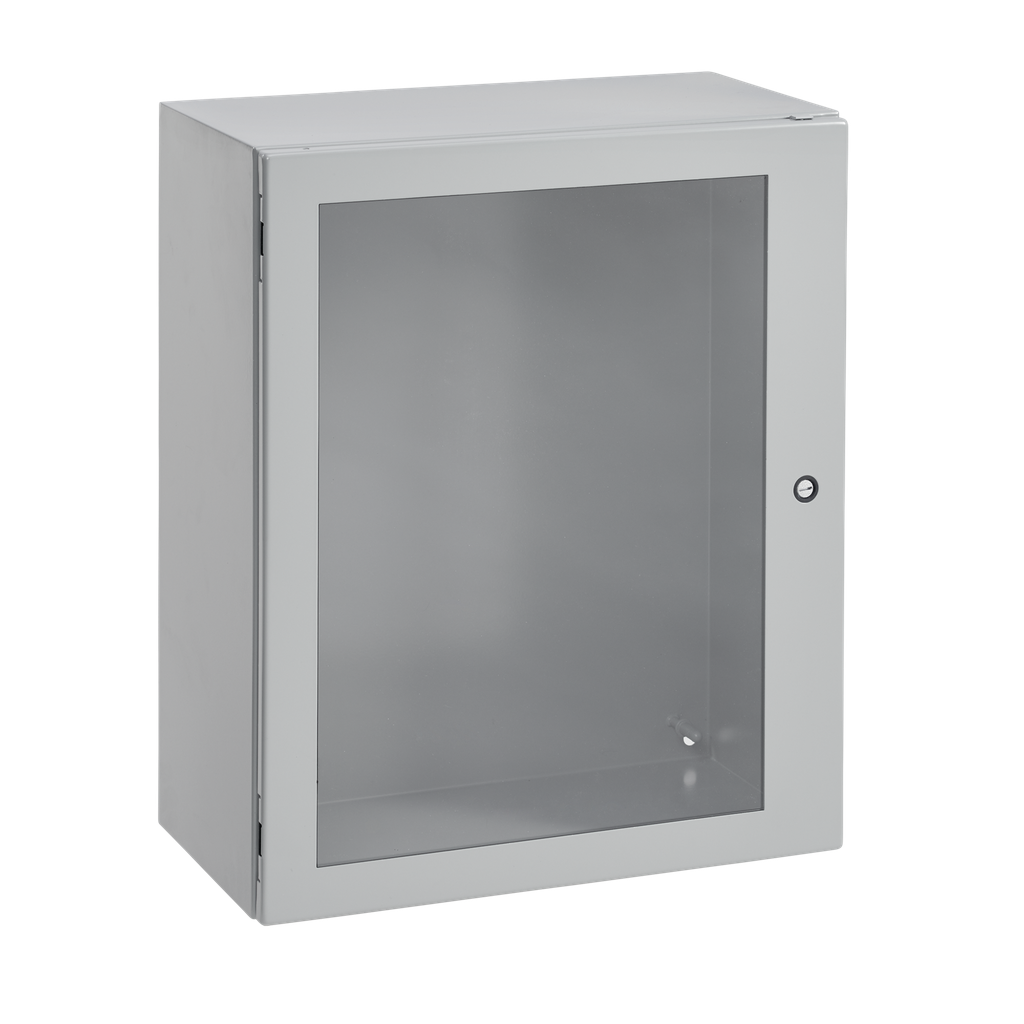

Product image for Hoffman CSD302420W CONCEPT Window-Door Enclosures, 30" x 24" x 20", Gray, Steel
Email

Hoffman CSD302420W CONCEPT Window-Door Enclosures, 30" x 24" x 20", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # CSD302420W | North Coast Part # 831655
$1,549.58/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Concept Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish.

Technical Information

Applications
Controls and Drives
Body Gauge
14
Color Coding
ANSI 61
Door Gauge
14
IP Rating
66
Material
Steel
Number of Latches
2
Size
30.00x24.00x20.00 in
Standard
CSA, File No. 42186: Type 4, 12,CUL Listed Per CSA C22.2 No. 94; Type 4, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 12, 13,UL 508A Listed; Type 4, 12; File No. E61997,VDE IP66
Type
Type 4 Mild Steel Freestanding Enclosure

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510779504
Color
Gray
Finish
Powder Coated
GTiN
00783510779504
Product UPC
78351077950
Weight
84 lb

Dimensions

Depth
20 Inch
Height
30 Inch
Length
35-1/2 Inch
Thickness
1.9 mm
Width
24 in
Features
  • Seams continuously welded and ground smooth
  • Corner-formed doors
  • Simple easy-to-remove and install hinge pins with built-in captivation clip
  • High-torque threadless studs and fasteners on door
  • Minimum-width body flange provides maximum door opening (210 degrees)
  • Door opens 210 degrees
  • External formed body flange
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for optional external wall-mount brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Seamless foam-in-place gasket
  • Quarter-turn slotted latch(es)
  • Grounding stud on body
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
  • Installation instructions provided
  • Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
  • Clear polycarbonate window flush with door surface
