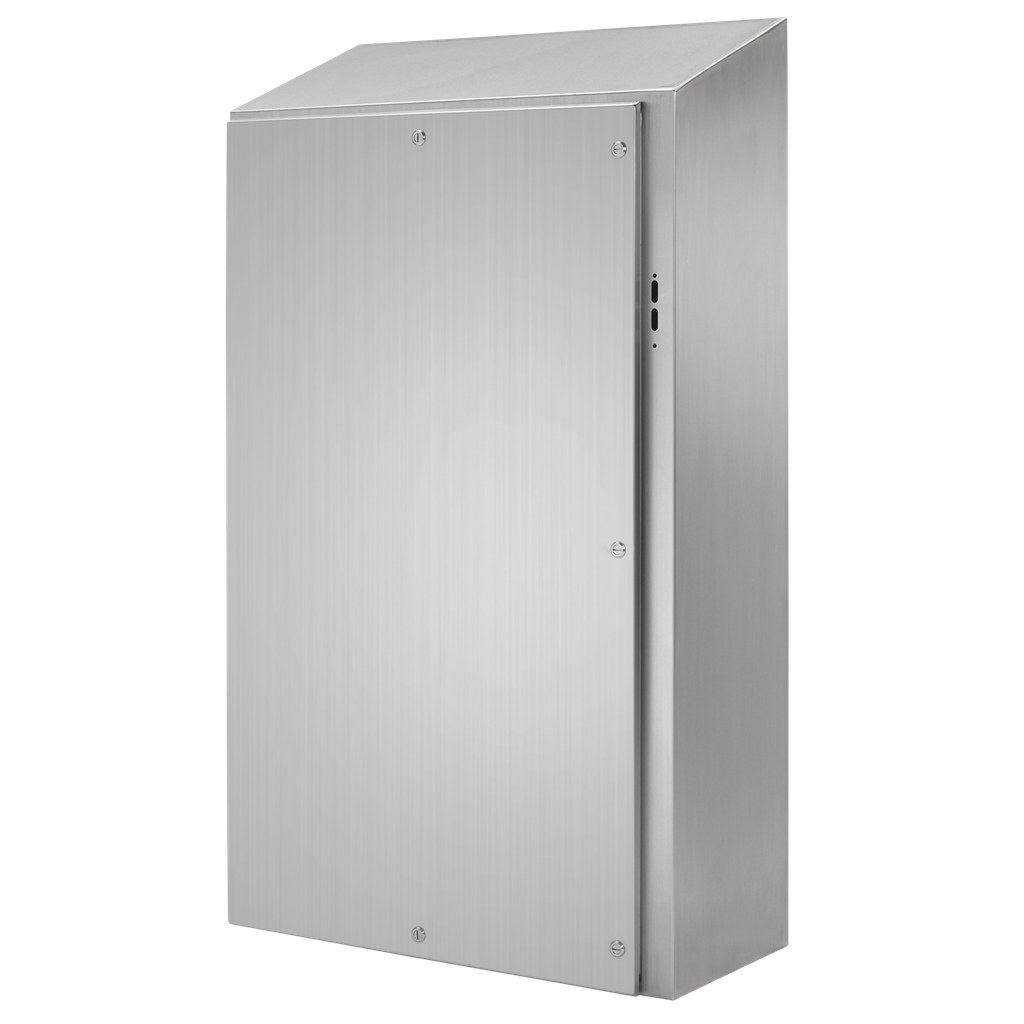

Product image for Hoffman WS30HS2508SS WaterShed, 304 SS Wallmount Disconnect Enclosure, 4X, 30x25x8
Email

Hoffman WS30HS2508SS WaterShed, 304 SS Wallmount Disconnect Enclosure, 4X, 30x25x8

Manufacturer: nVent Hoffman | Catalog # WS30HS2508SS | North Coast Part # 833714
$3,637.56/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
Specifically designed for disconnect applications in sanitary washdown production environments, such as food and beverage manufacturing. nVent HOFFMAN WaterShed Disconnect Enclosures feature a sloped top, sloped door edges, bullet-style hinges and additional unique features that facilitate washdown runoff.

Technical Information

Applications
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
IP Rating
66
Material
Stainless Steel
Size
30.00x25.00x8.00 in
Standard
CUL Listed Per CSA C22.2 No. 94; Type 4, 4X, 12; File No. E61997,IEC 60529, IP66,NEMA/EEMAC Type 4, 4X, 12,NSF 169,UL 508A Listed; Type 4, 4X, 12; File Number E61997
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Watershed

General Product Info

12-Digit UPC
783510136413
Color
Unpainted
Finish
Brushed
GTiN
00783510136413
Product UPC
78351013641
Weight
65 lb

Dimensions

Depth
8 Inch
Height
30 Inch
Length
40-3/4 Inch
Thickness
1.98 mm
Width
25 in
Features
  • Specifically designed for type 4x food & beverage industry, indirect contact zone applications.
  • Seams continuously welded and ground smooth
  • Smooth Type 304 stainless steel lift-off bullet-style hinges
  • Hinges are shielded by door edges
  • Hinged side of door has provisions to allow direct flushing of hinge area
  • 20-degree sloped top
  • 97-degree door opening
  • Door edges are sloped 20 degrees at top and bottom
  • Slanted flange trough collar along the top edge of the enclosure opening
  • Stainless steel quarter-turn latches with flush slotted insert
  • Seamless foam-in-place gasket
  • Self-grounding latch system
  • Bonding provision on door; grounding stud on body
  • Panel studs fit optional NEMA size panels
  • Adjustable door interlock bracket fastened to door
