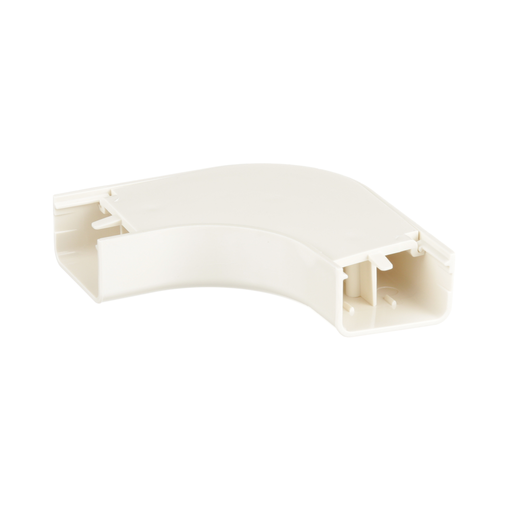

Panduit RAFX5IW-X LDS5 / LDPH5 Power Rated Right Angle Fitting

Manufacturer: Panduit | Catalog # RAFX5IW-X | North Coast Part # 83470
$5.46/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet Installation / Instruction Manual
The right angle fitting is a Surface Raceway fitting designed to transition your raceway around a corner while maintaining a 1 inch bend radius. It is designed to be used with LDPH5 raceway and features a snap-on installation. . It meets TIA/EIA Standards, is UL Listed and Compliant. It is Off White.

Technical Information

Applications
Pan-Way ® LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings.
Cover Type
Right Angle
Material
ABS Plastic
Mounting Type
Snap-On
Type
4-Inlet, 1-Outlet, Rectangular, Power/Communication

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Way

General Product Info

12-Digit UPC
074983529872
Color
Off-White
GTiN
30074983529873
Product UPC
07498352987
UNSPSC
39131711
Used With
LD5 Surface Raceway System

Dimensions

Depth
16.1 mm
Height
0.64 Inch
Length
65.4 mm
Overall Length
2.58 in
Width
65.4 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant.
Prop 65
  • No
