ABB DTW516 CU TP TRANSITION WASHER

Manufacturer: Thomas & Betts | Catalog # DTW516 | North Coast Part # 835213
$483.89/c (100 ea)
ea
Order in multiples of 1000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

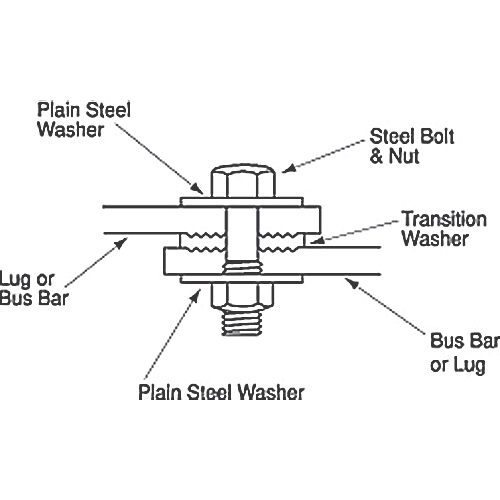

Transition Washer for Connecting Aluminum/Aluminum, Aluminum/Copper and Aluminum/Copper Lugs and Bus Bar, Outer Diameter 25.4mm (1.0 Inch), Inner Diameter 8.6mm (0.34 Inch), Stud Size 5/16 Inch, Copper Alloy, Tin Plated

Technical Information

Applications
Teeth on the Transition Washers Penetrate Aluminum and Copper Oxides, Enabling Copper to Aluminum Connections to be Made in a Bolted Joint without the set of Inhibiting Compounds
Material
Copper
Standard
UL E9809
Type
Transition Washer

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
786210868448
Color
Silver
Finish
Tin Plated
GTiN
05414363150305
Product UPC
78621086844

Dimensions

Inside Diameter
0.34 in
Outside Diameter
1 in 25.4 mm
Thickness
0.035 in; 0.89 mm
Features
  • Transition washers also accommodate the difference in thermal expansion between copper and aluminum, and enhances the efficiency of bolted grounding connections.
  • Teeth on the transition washers penetrate aluminum and copper oxides, enabling copper to aluminum connections to be made in a bolted joint without the use of inhibiting compounds.
Notes
  • Wire sizes and combinations shown have been tested to and meet or exceed Thomas & Betts specifications. Connectors may be suitable for other wire sizes or combinations. Thomas & Betts sells these connectors with the understanding that the user will perform the necessary tests to determine their suitability for the intended purpose.
