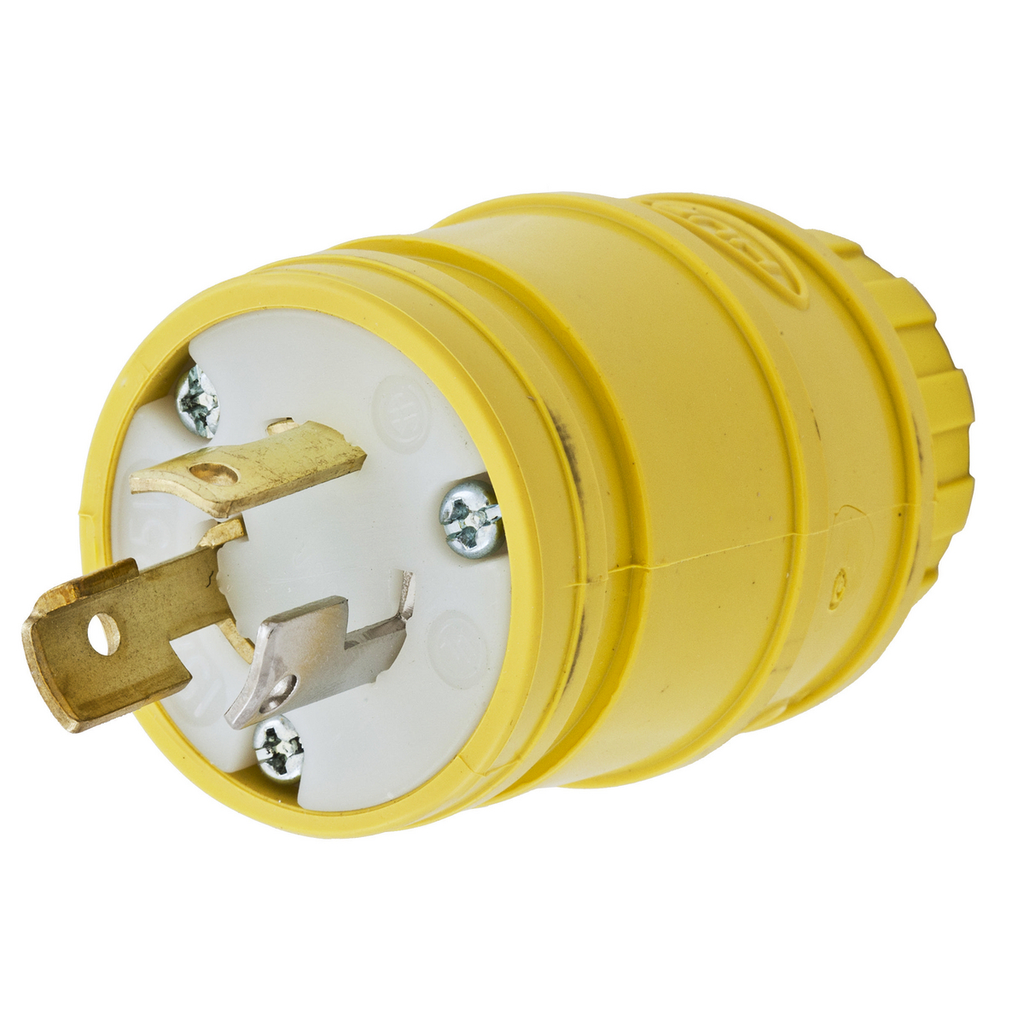

Product image for Hubbell HBL2447 15 Amp 125 Volt 2-Pole 3-Wire NEMA L5-15P Yellow Locking Plug
Image thumbnail 0
Image thumbnail 1
Email

Hubbell HBL2447 15 Amp 125 Volt 2-Pole 3-Wire NEMA L5-15P Yellow Locking Plug

Manufacturer: Hubbell / Kellems | Catalog # HBL2447 | North Coast Part # 8390
$38.06/ea
ea
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Elastogrip® Plug, 15A, 125V AC, 2-Pole, 3-Wire Grounding, Yellow

Technical Information

Amperage
15 Amp
Applications
Power Connection
Conductor Size
14-10 AWG
Cord Type
Portable
Current
15 Amp
Horsepower
0.5 hp
Material
Elastomeric
Mounting Type
Cord
NEMA
L5-15P
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
#8-32 Brass
Size
2.19 in x 1.56 in x 1.56 in
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
TC Connection
Terminal Screws
Type
Standard Sized
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
18-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585235806
Color
Yellow
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
GTiN
00783585235806
Housing Material
Yellow Elastomer
Product UPC
78358523580
Weight
0.15 lb

Dimensions

Height
1.56 Inch
Length
2.19 Inch
Width
1.56 in

Certifications and Compliance

Country of Origin
USA
Features
  • Integral weatherproofing shroud seals connection between plug and connector
  • Nylon compression nut keeps water and dust from getting into the body around the cord
  • Dust tight
