ABB RM737 INS NYL RING TERM, 250MCM

Manufacturer: Thomas & Betts | Catalog # RM737 | North Coast Part # 841276
$3,160.68/c (100 ea)
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

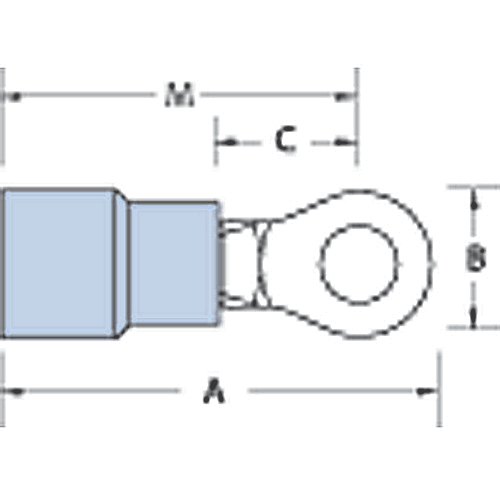

Nylon Insulated Large Ring Terminal, Length 3.00 Inches, Width 1.13 Inches, Maximum Insulation .868, Bolt Hole 3/8 Inch, Wire Range 250MCM, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Serrated
Conductor Size
250 kcmil
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
CSA,E2186,UL
Stud Size
3/8 in
Temperature Rating
105 degrees C
Type
Insulated
Voltage
600 Volt
Wire Size
250 kcmil

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210821580
Color
Blue
Finish
Electro Tin Plated
GTiN
05415022255249
Product UPC
78621082158
Features
  • Funneled Barrel Entry, Deep Internal Serrations, Brazed or overlapping seams.
Notes
  • Not available on Mylar Tape.
