Panduit DNFR18-250FIB-L Disconnect, Red, Vinyl, 18-22 AWG, 0.25" Tab, PK50

Manufacturer: Panduit | Catalog # DNFR18-250FIB-L | North Coast Part # 846257
$227.40/c (100 ea)
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
350 available

For Pick Up

at Auburn Closes 3:00pm PT
350 available

For Delivery

Order by 4:00pm PT for delivery tomorrow
Not in local stock *
Check another branch
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Specification Sheet

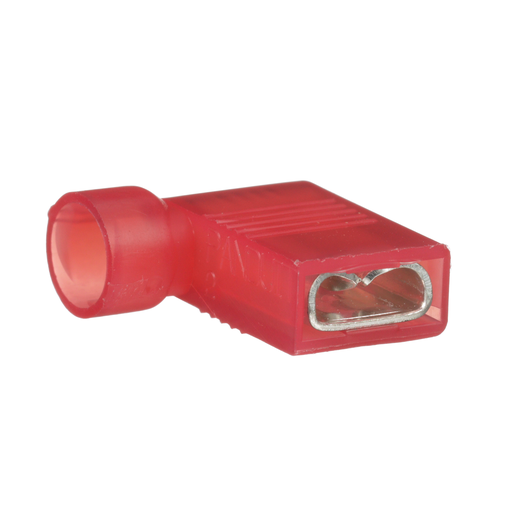

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
E1 Plus Solid State Relay
Voltage
600 Volt
Wire Size
22-18 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983118038
Color
Amber,Green,Red,White
Finish
Tin Plated
GTiN
00074983118038
Product UPC
07498311803
UNSPSC
39121409

Dimensions

Depth
0.6 Inch
Height
0.6 Inch
Overall Length
0.58 in
Width
0.6 in

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
No
Country of Origin
Mexico
Prop 65
  • No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
