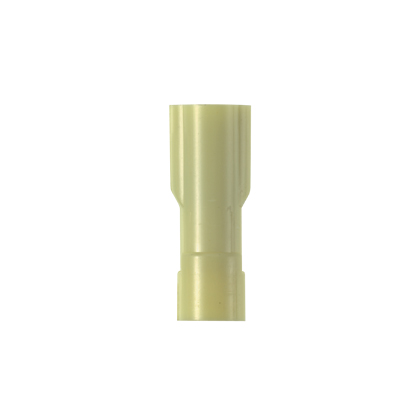

Product image for Panduit DPF10-250FIB-L Loose Piece Disconnect
Image thumbnail 0
Image thumbnail 1
Email

Panduit DPF10-250FIB-L Loose Piece Disconnect

Manufacturer: Panduit | Catalog # DPF10-250FIB-L | North Coast Part # 846283
$242.93/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The vibration resistant DiscoGrip™ female disconnect is made of brass and is tin-plated. It is fully insulated in yellow premium nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm.). It is 0.96" (24.4 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 50.

Technical Information

Barrel Type
Butted Seam
Color Coding
Yellow
Conductor Size
10 AWG
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
TC Connection
Funnel
Temperature Rating
221 degrees F
Type
Disconnect
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983740543
Color
Yellow
Finish
Rust-Proof Plating, Vinyl Coated
GTiN
00074983740543
Product Type
Terminals
Product UPC
07498374054
UNSPSC
39121409

Dimensions

Height
0.27 Inch
Length
0.96 Inch
Overall Length
0.96 in
Width
0.36 in

Certifications and Compliance

ARRA Compliant
Yes
Buy American Compliant
Y
CE Compliant
No,No
Country of Origin
Mexico
Hazmat Flag
No
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
