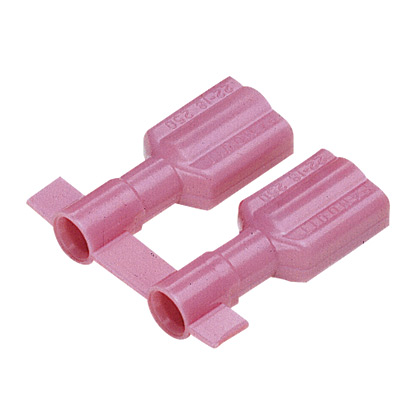

Product image for PAN DPF18-206FIB-3K Reel Smart™ DPF
Image thumbnail 0
Image thumbnail 1
Email

PAN DPF18-206FIB-3K Reel Smart™ DPF

Manufacturer: Panduit | Catalog # DPF18-206FIB-3K | North Coast Part # 846299
$652.64/m (1000 ea)
ea
Order in multiples of 3000 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Buy American Compliant Buy American Compliant Specification Sheet Product Catalog Page
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in red premium nylon housing. It has a tab size of 0.187/0.205 x 0.02" (4.8/5.2 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm.). It is 0.78" (19.8 mm) long and 0.31" (7.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in reels of 3000.

Technical Information

Barrel Type
Butted Seam
Color Coding
Red
Conductor Size
18 AWG
Material
Brass
Max Operating Temperature
105 degrees C
TC Connection
Funnel Entry
Temperature Rating
221 F
Type
Disconnect
Voltage
600 Volt
Wire Size
18 AWG

Packaging

Pkg Qty
3000

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Reel Smart™

General Product Info

12-Digit UPC
074983823710
Color
Red
Finish
Tinned
GTiN
00074983823710
Product UPC
07498382371
UNSPSC
39121409

Dimensions

Height
0.22 Inch
Overall Length
0.78 in
Width
0.31 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
